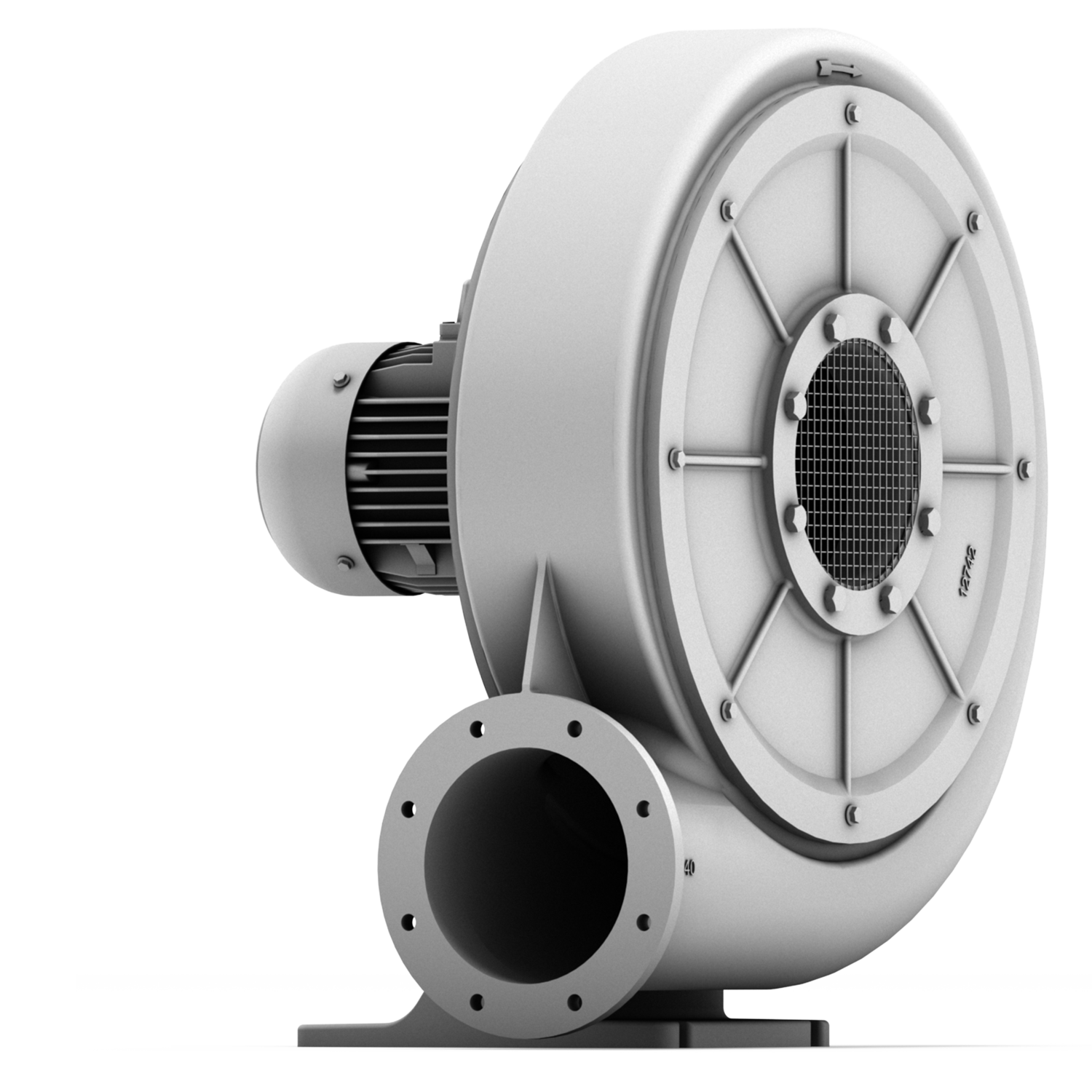

Explosion-proof radial medium pressure blowers
RD 7 ATEX
Up to 90 m³/min and 6,800 Pa. Explosion-proof construction according to DIN EN 14986 (Design of fans working in potentially explosive atmospheres). Suitable for zones 1, 2 and 22. Housing made of cast aluminium, impellers primarily bent backwards and made of aluminium, mostly corrosion-resistant.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
RD 7 ATEX
-
50
3600
230/400
50
9,0/5,2
2,5
2870
53,6
