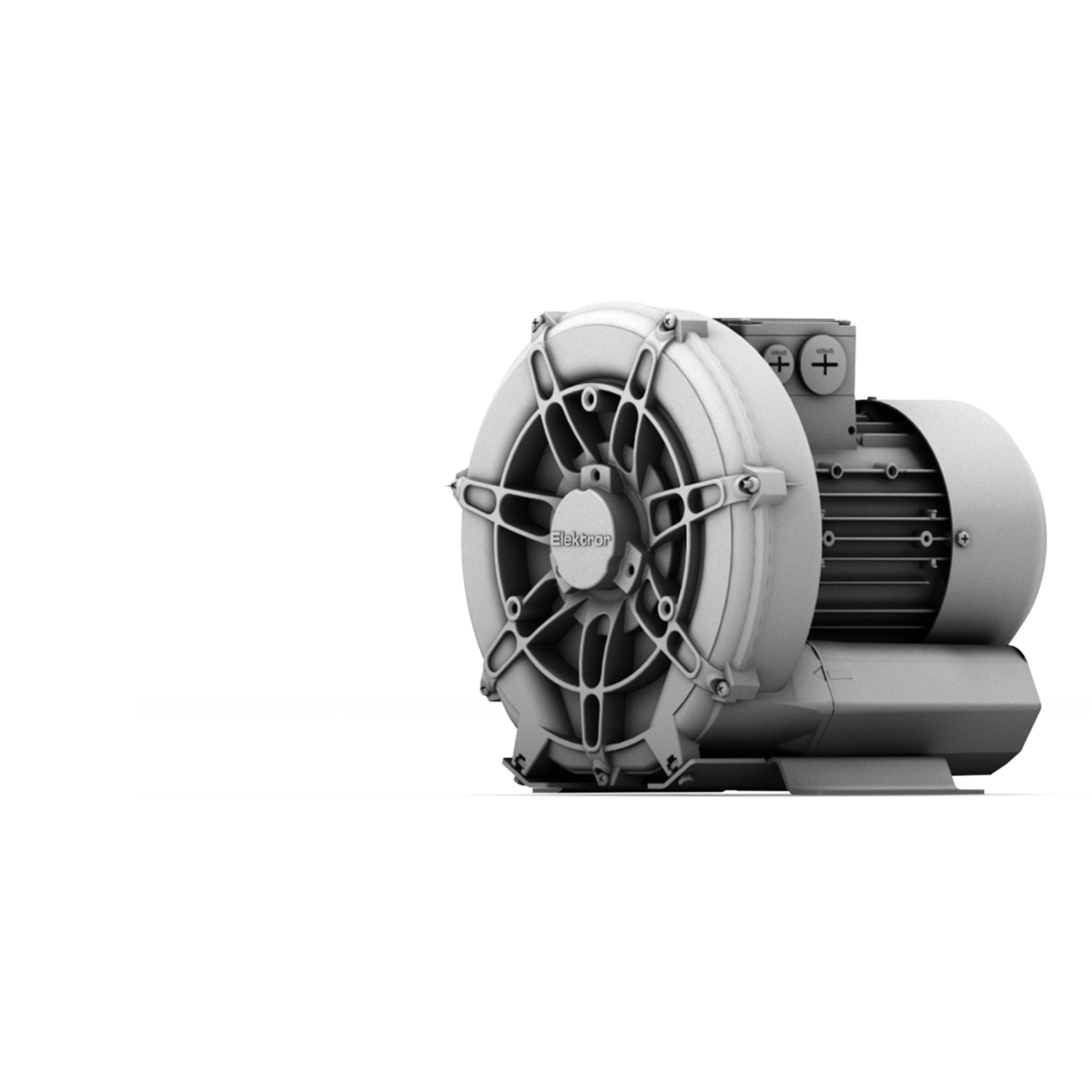

Single-stage side channel blowers
1SD 210, 1SE 210
Up to 21.83 m³/min and 750 mbar. Housing and open impellers made of cast aluminium. Direct motor, integrated temperature guard, integrated silencer, compact construction, mostly corrosion-resistant.
- Three-phase current 50 Hz
- Three-phase current 60 Hz
- Single-phase current 50 Hz
- Single-phase current 60 Hz
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Weight
Sound pressure level
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
kg
dB (A)
1SD 210 - 50/0,37
-
1,33
13000
1,33
12000
207-253/360-440
50
1,80/1,04
0,37
10
53
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Weight
Sound pressure level
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
kg
dB (A)
1SD 210 - 50/0,37
-
1,63
16000
1,63
15000
220-250/415-480
60
2,40/1,40
0,63
10
56
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Weight
Sound pressure level
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
kg
dB (A)
1SE 210 - 50/0,37
-
1,33
13000
1,33
12000
230
50
2,70
0,37
10
53
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Weight
Sound pressure level
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
kg
dB (A)
1SE 210 - 60/0,37
-
1,63
16000
1,63
15000
230
60
3,20
0,43
10
56
Technical drawings
Downloads
|
Catalogue 1SD/2SD |
Catalogue | 8 MB | Download |
