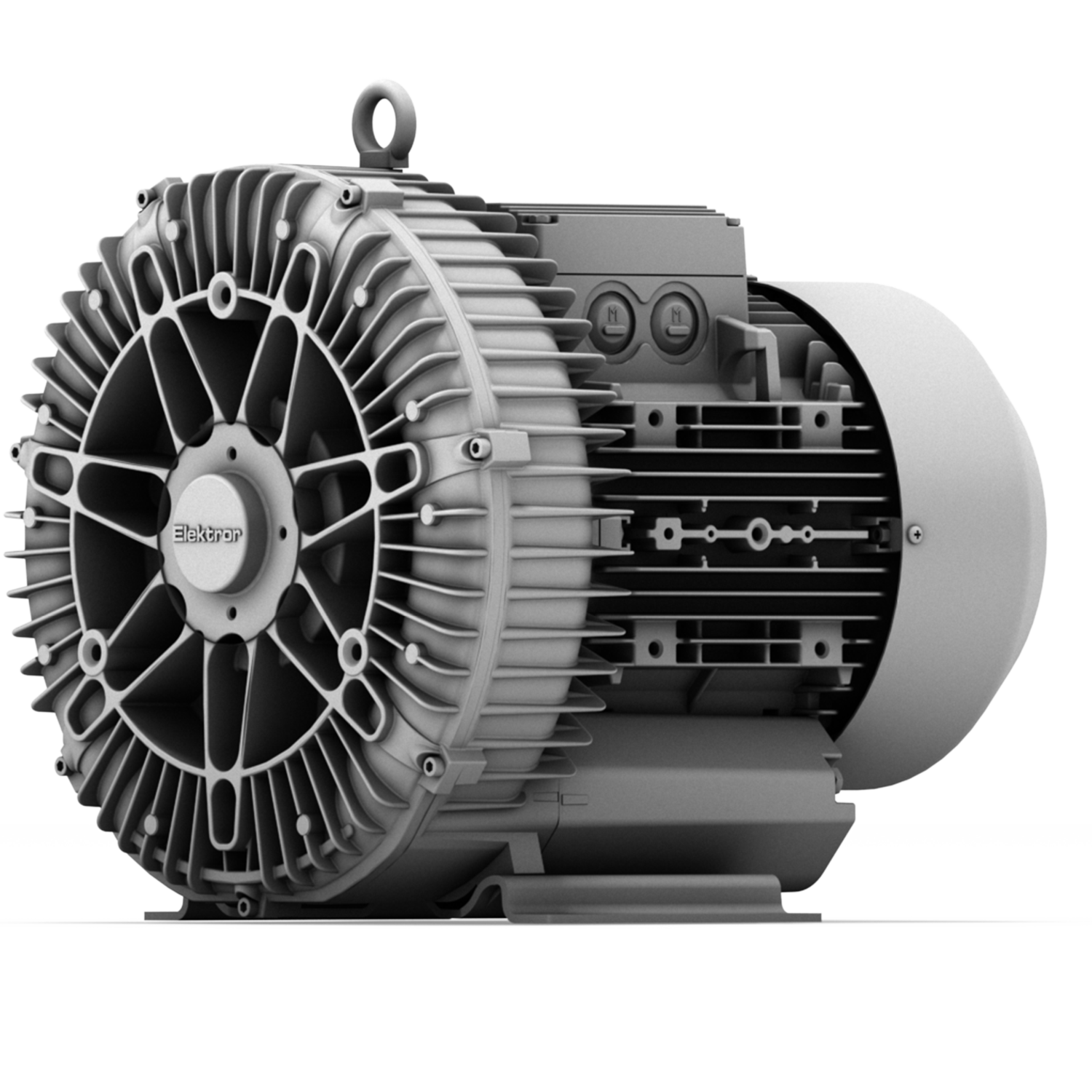

Single-stage side channel blowers
1SD 810
Up to 21.83 m³/min and 750 mbar. Housing and open impellers made of cast aluminium. Direct motor, integrated temperature guard, integrated silencer, compact construction, mostly corrosion-resistant.
- Three-phase current 50 Hz
- Three-phase current 60 Hz
- Three-phase current 50 Hz IE3
- Three-phase current 60 Hz IE3
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Weight
Sound pressure level
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
kg
dB (A)
1SD 810 - 50/4,0
-
8,83
20000
8,83
20000
360-440
50
9,00
4,0
54
70
1SD 810 - 50/5,5
-
8,83
30000
8,83
30000
360-440
50
13,30
5,5
63
70
1SD 810 - 50/7,5
-
8,83
43000
8,83
32000
360-440
50
16,70
7,5
66
70
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Weight
Sound pressure level
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
kg
dB (A)
1SD 810 - 50/4,0
-
10,33
16000
10,33
16000
415-480
60
10,90
6,0
54
74
1SD 810 - 50/5,5
-
10,33
28000
10,33
30000
415-480
60
15,30
8,6
63
74
1SD 810 - 50/7,5
-
10,33
40000
10,33
35000
415-480
60
18,20
9,8
66
74
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Weight
Sound pressure level
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
kg
dB (A)
1SD 810 - 50/4,0
IE3
8,83
18000
8,83
20000
400/690
50
7,45/4,30
4,0
62
70
1SD 810 - 50/5,5
IE3
8,83
30000
8,83
30000
400/690
50
10,10/5,83
5,50
73
70
1SD 810 - 50/7,5
IE3
8,83
42000
8,83
34000
400/690
50
13,50/7,80
7,5
77
70
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Weight
Sound pressure level
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
kg
dB (A)
1SD 810 - 50/4,0
IE3
10,33
15000
10,33
16000
480
60
7,40
4,60
62
74
1SD 810 - 50/5,5
IE3
10,33
25000
10,33
27000
480
60
9,60
6,30
73
74
1SD 810 - 50/7,5
IE3
10,33
40000
10,33
35000
480
60
12,90
8,60
77
74
