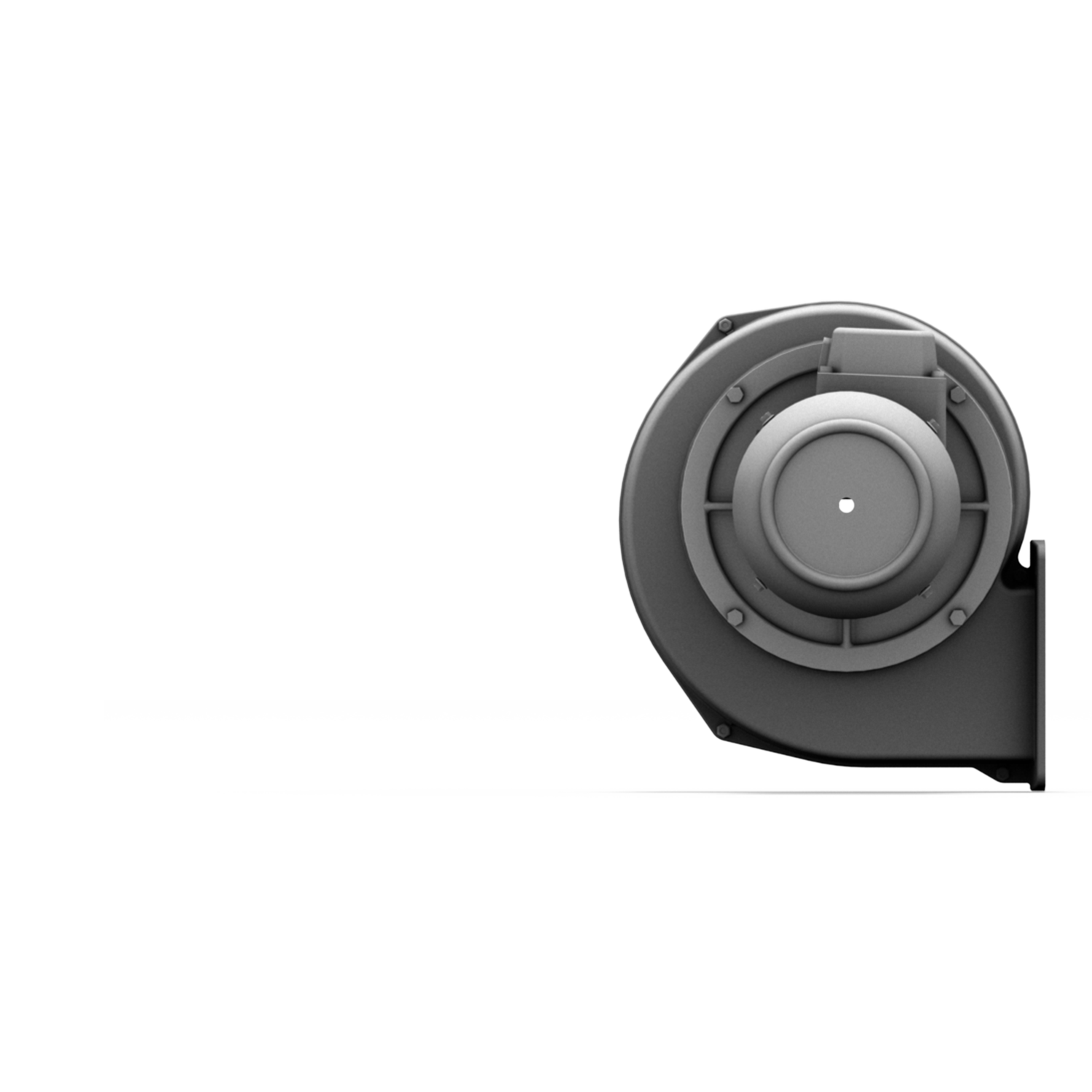

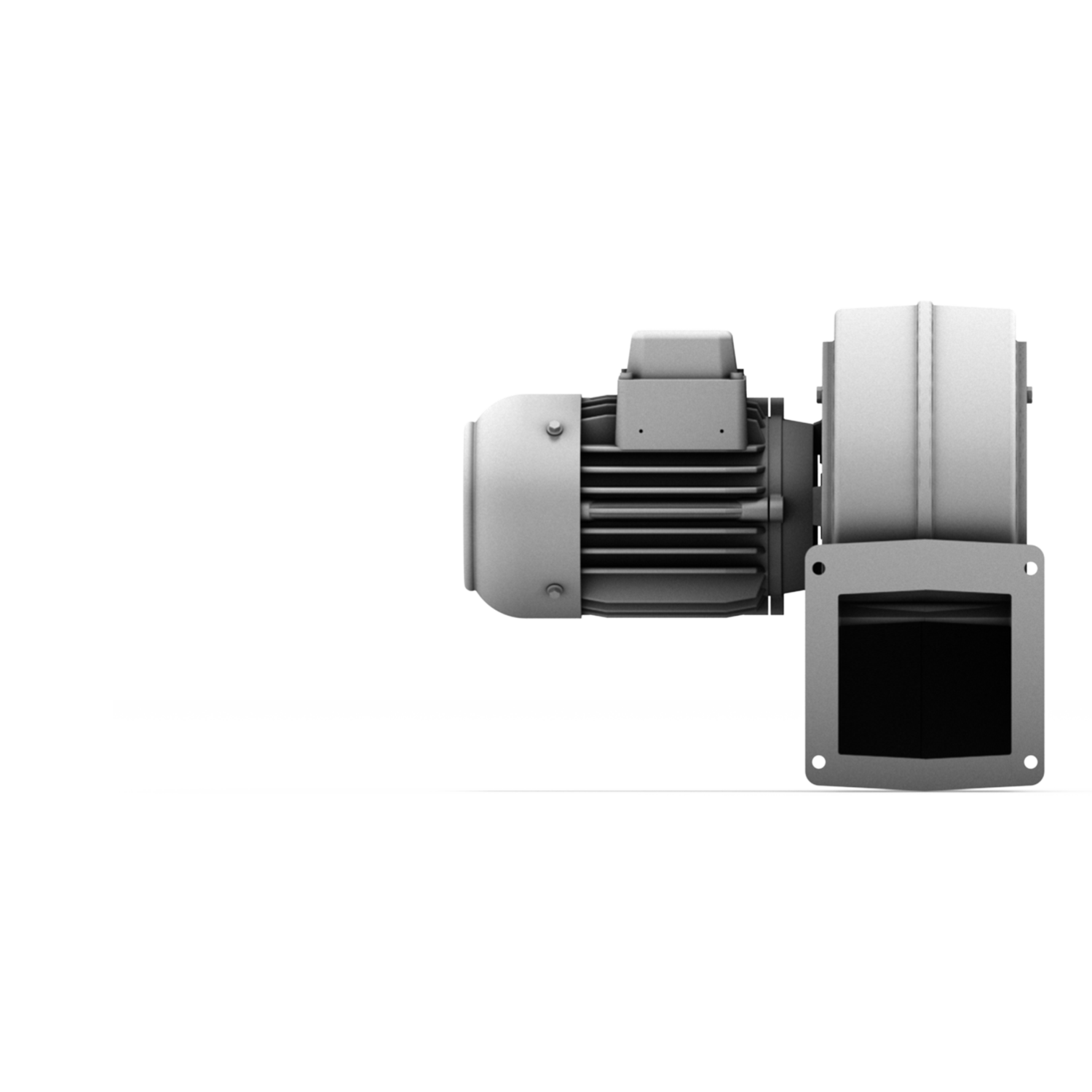

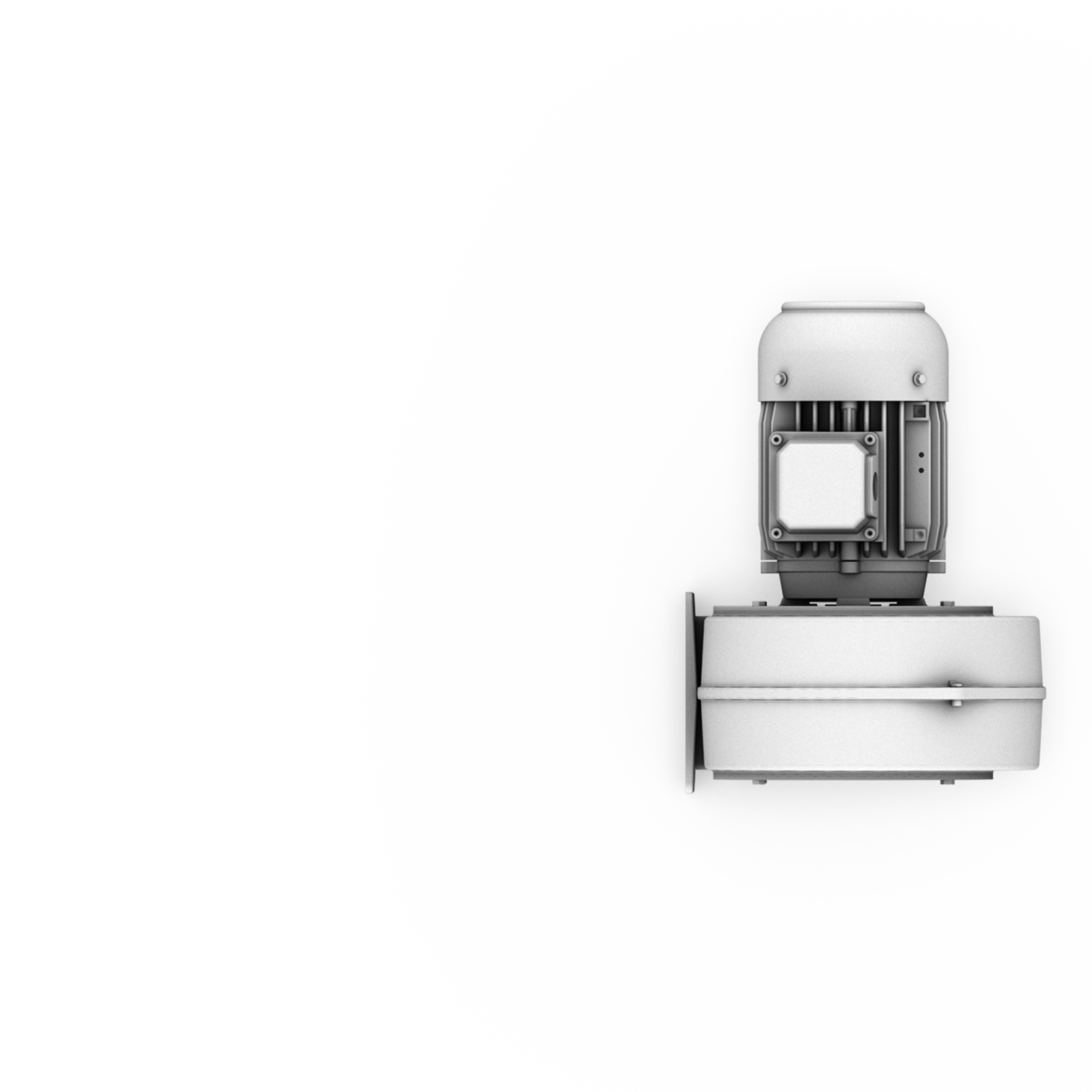

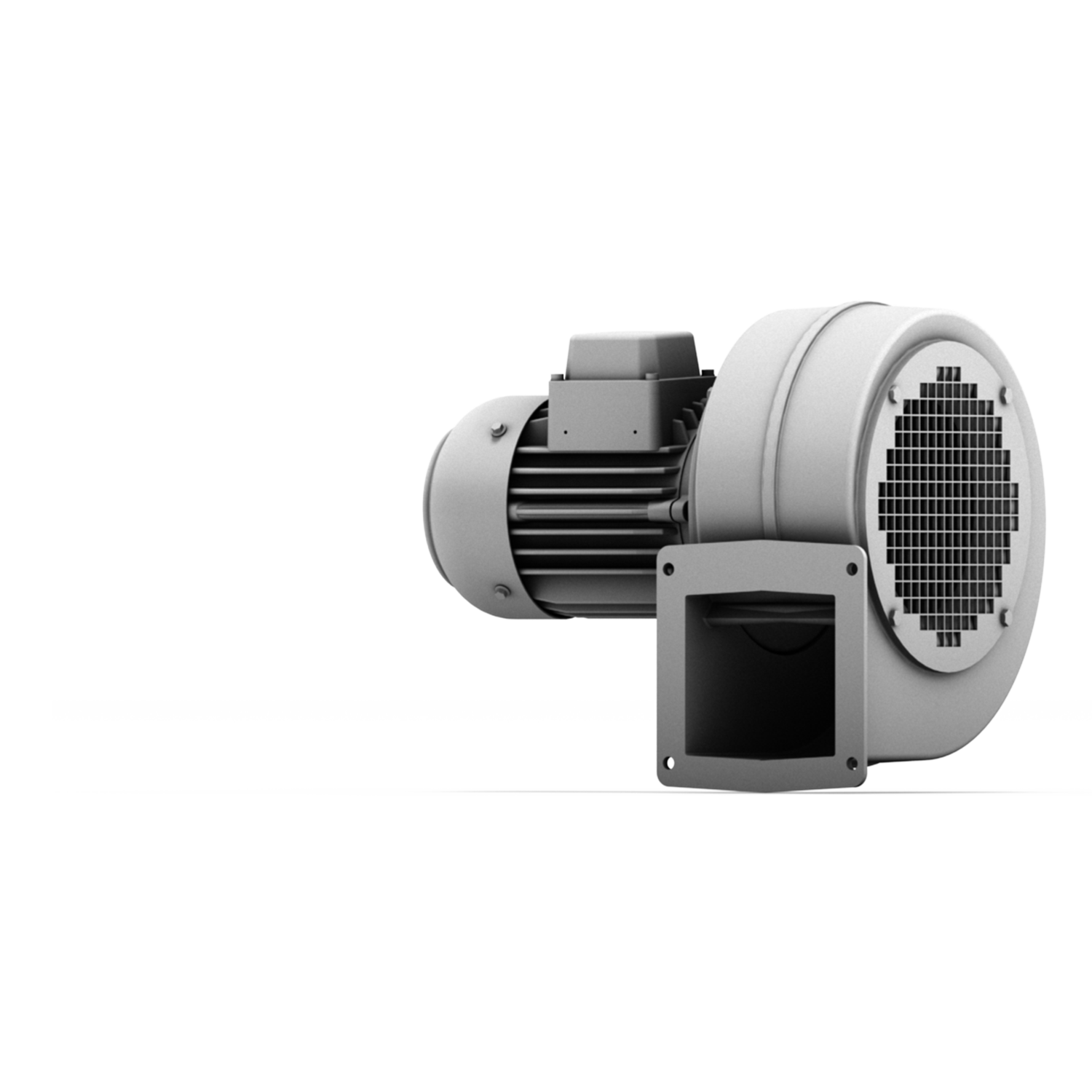

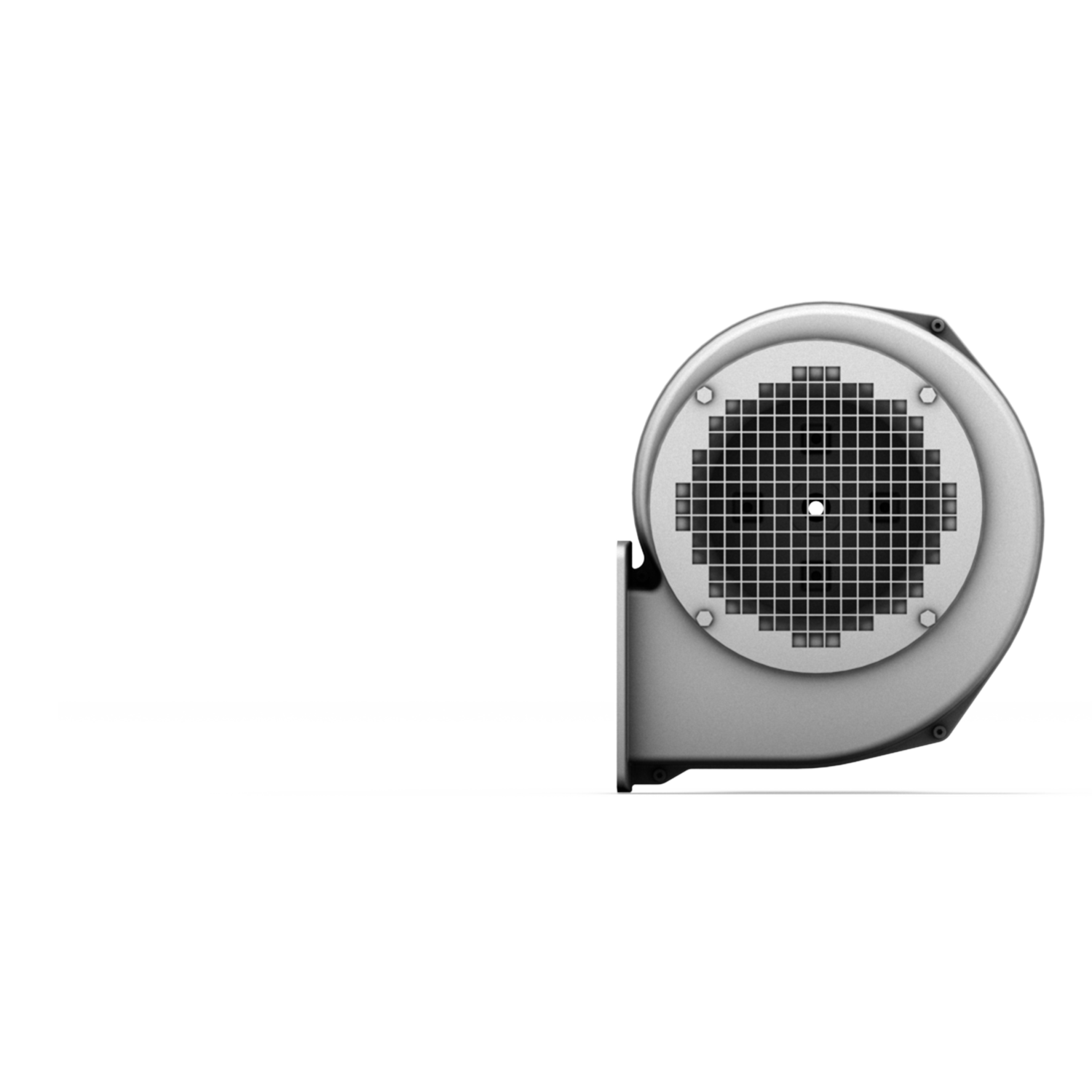

Radial Low Pressure Blowers
D 052, E 052
Up to 95 m³/min and 2,200 Pa. Housing made of cast aluminium, drum impellers bent forward and made of galvanized sheet steel, mostly corrosion-resistant.
- Three-phase current 50 Hz
- Three-phase current 60 Hz
- Single-phase current 50 Hz
- Single-phase current 60 Hz
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
Capacitor
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
µF/V
D 052
IE3
13,2
660
230/400
50
1,20/0,69
0,25
2825
6,7
-
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
Capacitor
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
µF/V
D 052
IE3
12,0
950
230/400
60
1,42/0,82
0,30
3435
6,7
-
D 052
NEMA Premium
12,0
950
277/480
60
1,18/0,68
0,30
3435
6,7
-
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
Capacitor
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
µF/V
E 052
IE2
13,2
660
230
50
1,67
0,25
2840
6,9
12/450
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
Capacitor
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
µF/V
E 052
IE2
17,2
950
230
60
2,00
0,30
3420
6,9
12/450
ATEX
ATEX models are available for this series on request. If you are interested, please fill in and send us our ATEX self-assessment form.
