Radial Conveying Blowers

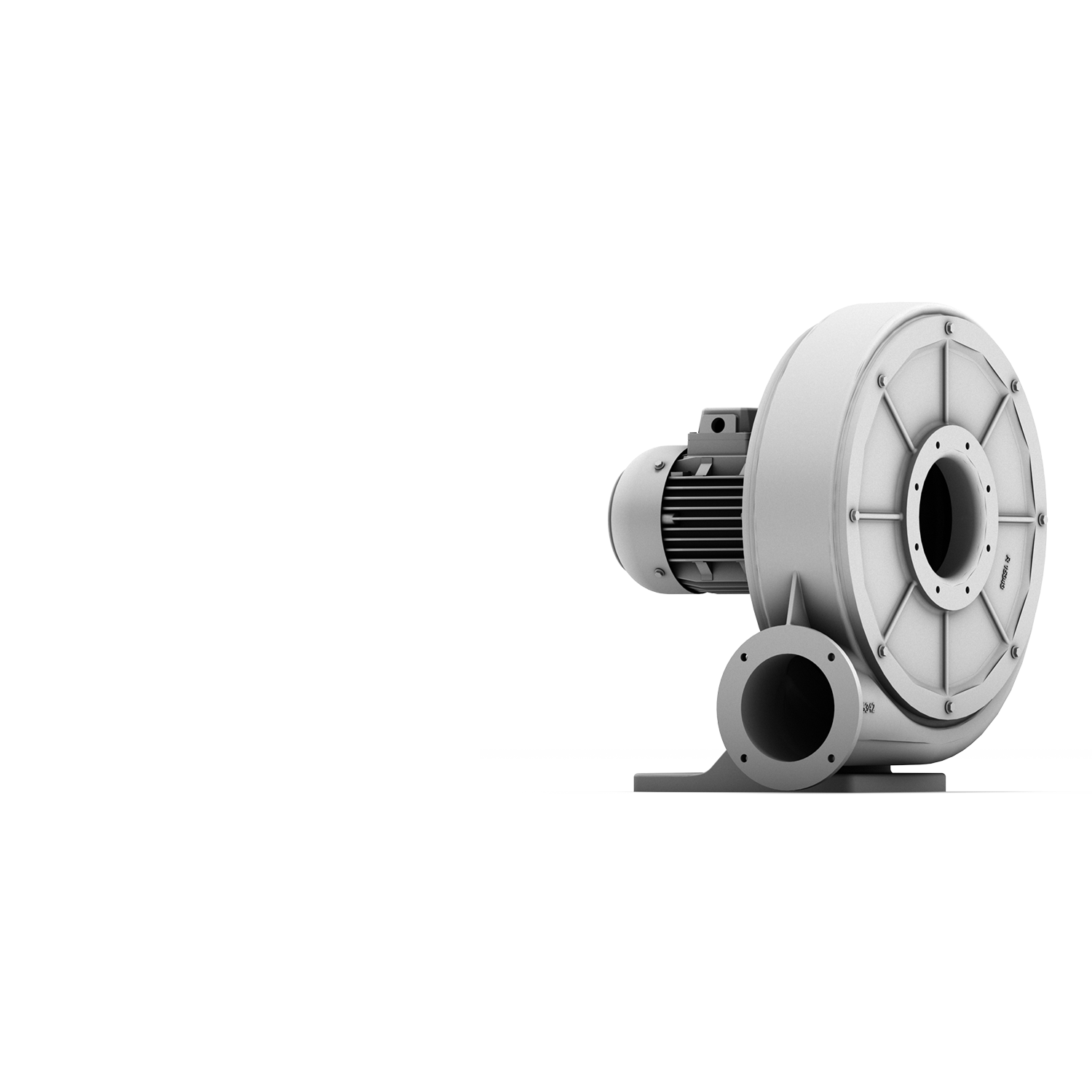

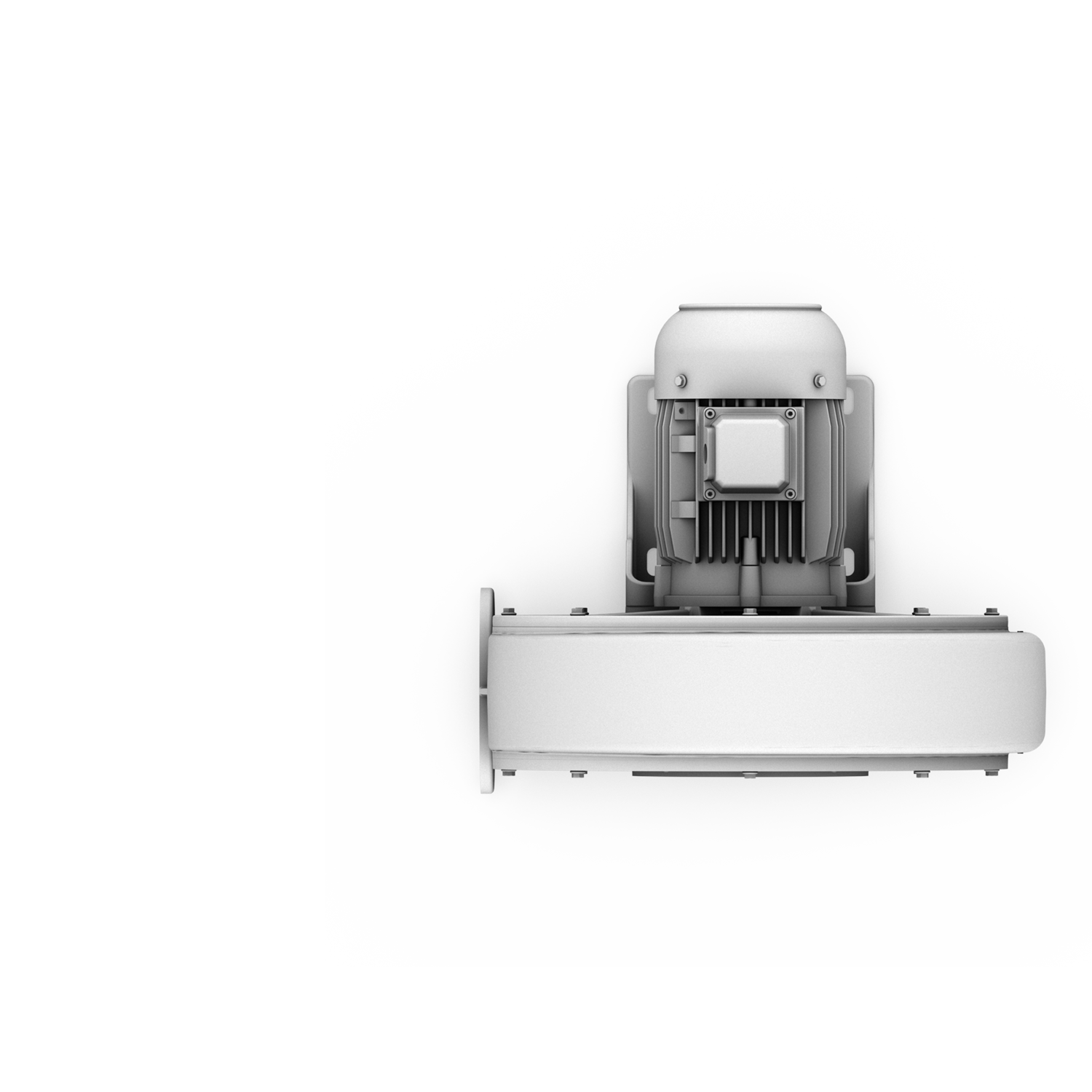

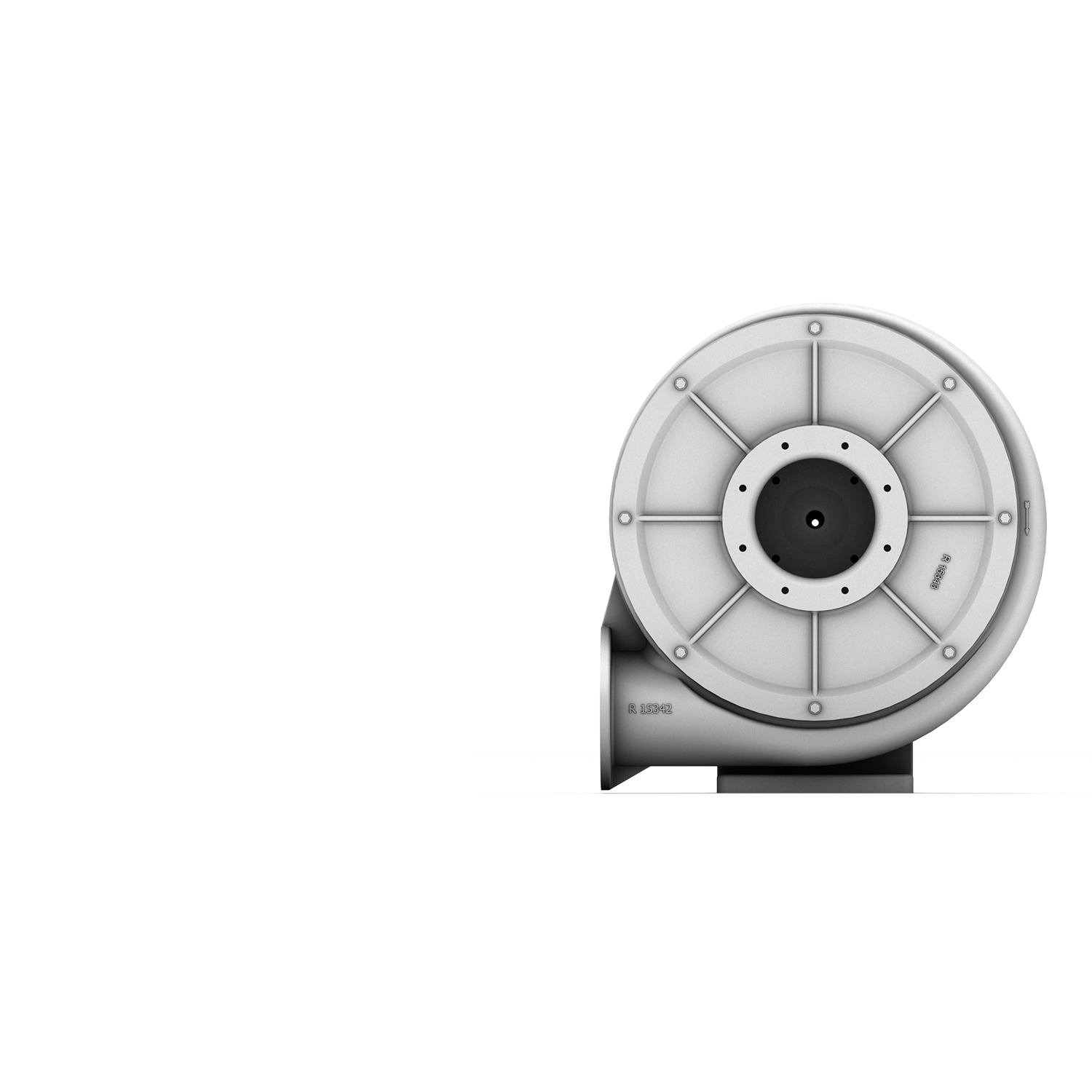

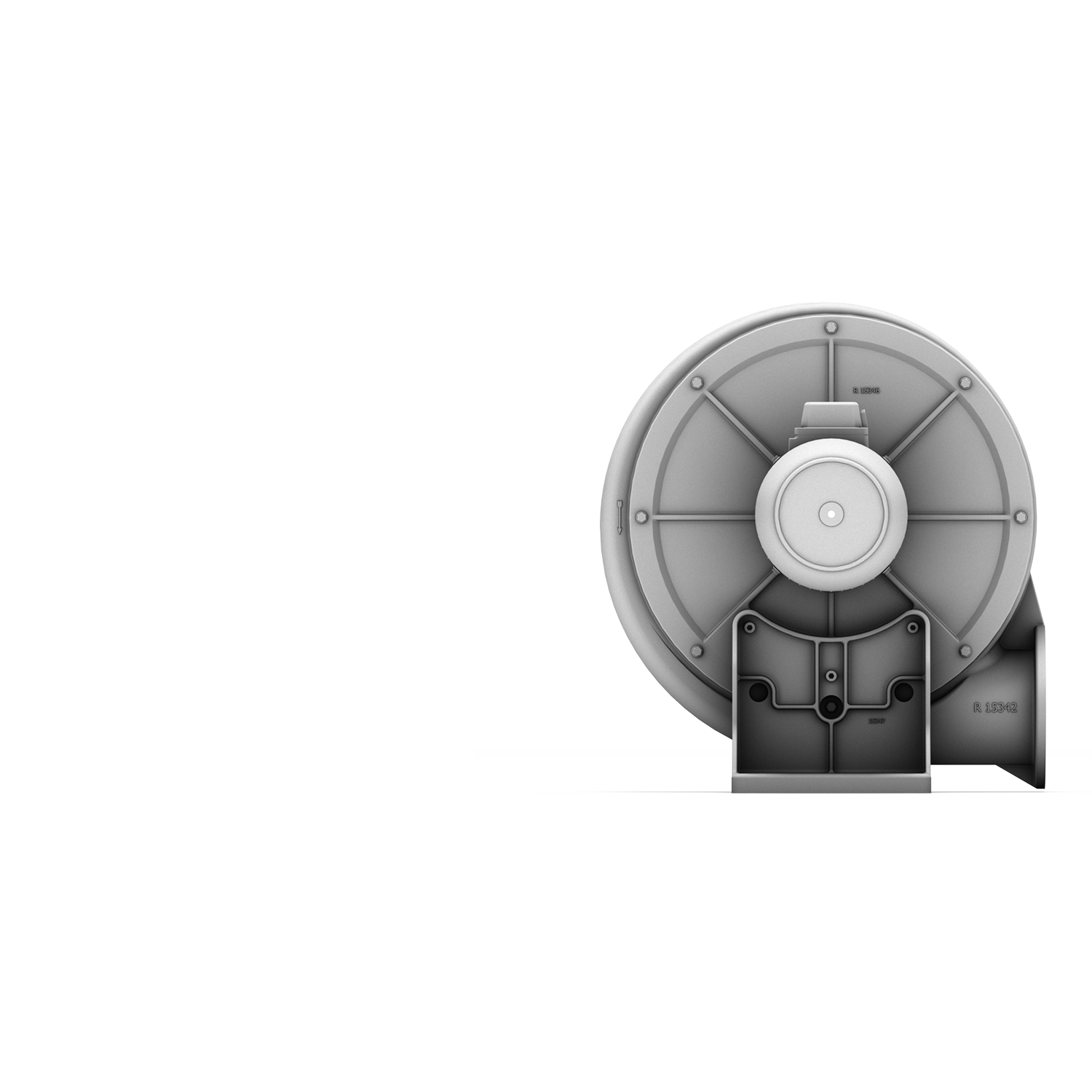

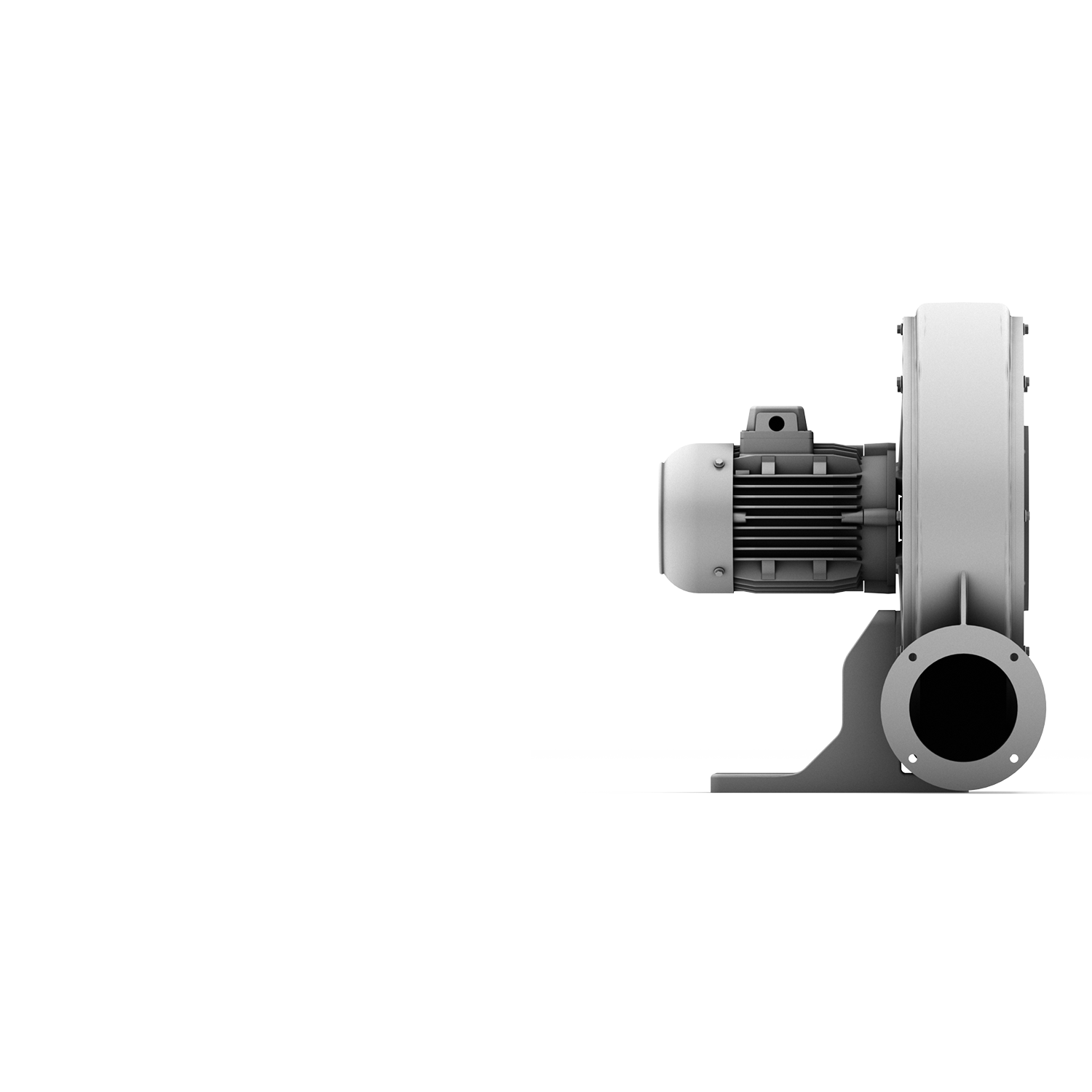

RD 62 F
Up to 64 m³/min and 7,150 Pa. For the direct conveyance of light dry bulk solids. Housing made of cast aluminium, open transport impellers made of steel, mostly corrosion-resistant.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Motor speed
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
min-1
kg
RD 62 F
IE3
33,0
3100
230/400
50
7,60/4,40
2,20
2870
2870
38
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Motor speed
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
min-1
kg
RD 62 F
IE3
33,0
3100
230/400
60
9,10/5,30
2,64
3480
3480
38
RD 62 F
NEMA Premium
33,0
3100
277/480
60
7,60/4,40
2,64
3480
3480
38

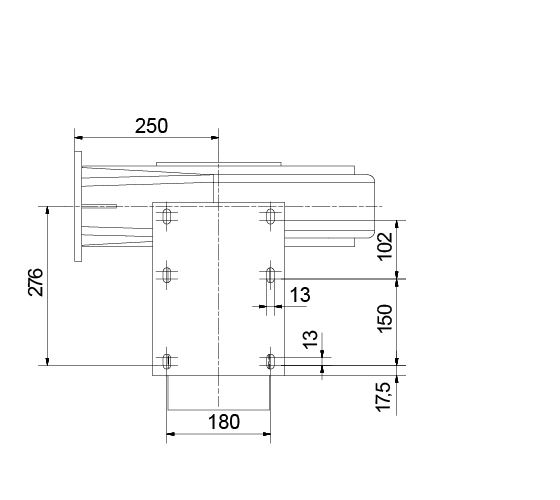

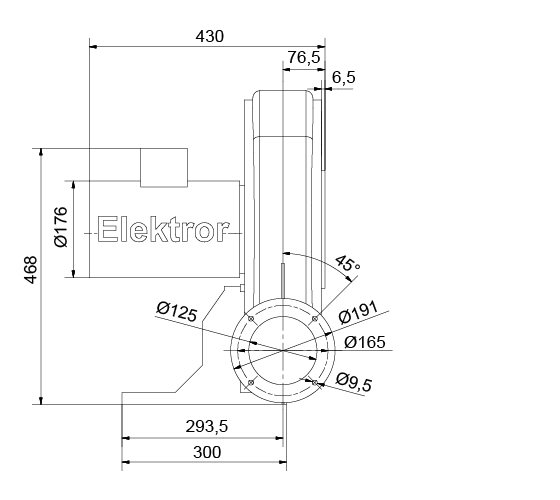

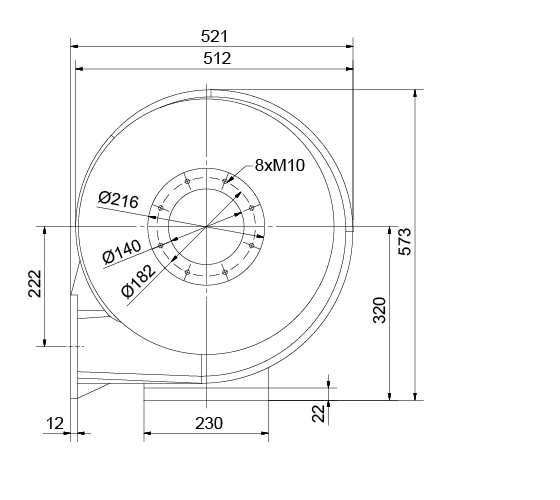

Technical drawings
Downloads
Catalogue RD F | Catalogue | 3 MB | Download | |
Catalogue RD | Catalogue | 7 MB | Download | |
Instruction manual RD F (de, en) | Instruction manual | 1 MB | Download | |
Instruction manual RD F (fr, it, nl, da) | Instruction manual | 2 MB | Download |
