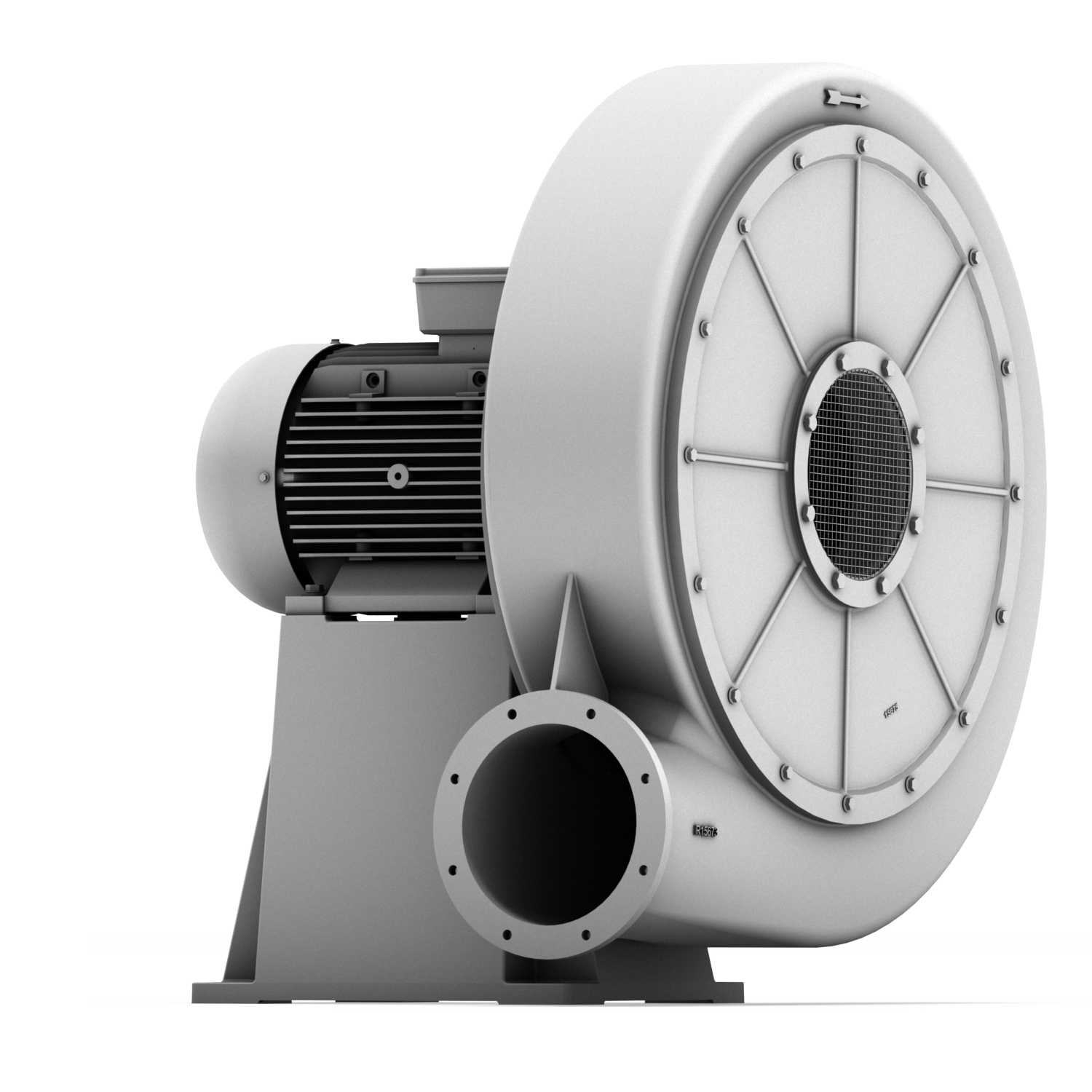

Radial Medium Pressure Blowers
RD 92
Up to 142 m³/min and 10,600 Pa. Housing made of cast aluminium, impellers primarily bent backwards and made of aluminium, mostly corrosion-resistant.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Motor speed
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
min-1
kg
RD 92
IE3
110,0
7700
400
50
27,7
15,0
2945
2945
205
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Motor speed
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
min-1
kg
RD 92
IE3
158
8800
400
60
31,5
18,0
3550
3550
215
RD 92
NEMA Premium
158
8800
480
60
26,5
18,0
3550
3550
215
Technical drawings
