High Efficiency Blowers

S-HE 420/105

Up to 275 m³/min and 4,800 Pa. Highly efficient impellers bent backwards and made of steel. Very high level of effectiveness, low energy consumption. Housing made of steel. Variable connection possibilities.

Characteristic curves

Performance data

Efficiency class

Volume flow

Total pressure difference

Voltage

Frequency

Current consumption

Performance

Fan speed

Weight

-

m³/min

Pa

V

Hz

A

kW

min-1

kg

S-HE 420/105-50/3,0

IE3

107,3

2700

230/400

50

10,00/5,77

3,0

2910

124

Characteristic curves

Performance data

Efficiency class

Volume flow

Total pressure difference

Voltage

Frequency

Current consumption

Performance

Fan speed

Weight

-

m³/min

Pa

V

Hz

A

kW

min-1

kg

S-HE 420/105-60/3,0

IE3

91,9

3000

460 Y

60

5,01

3,0

3520

122

S-HE 420/105-60/3,0

NEMA Premium

91,9

3000

460 Y

60

5,01

3,0

3520

122

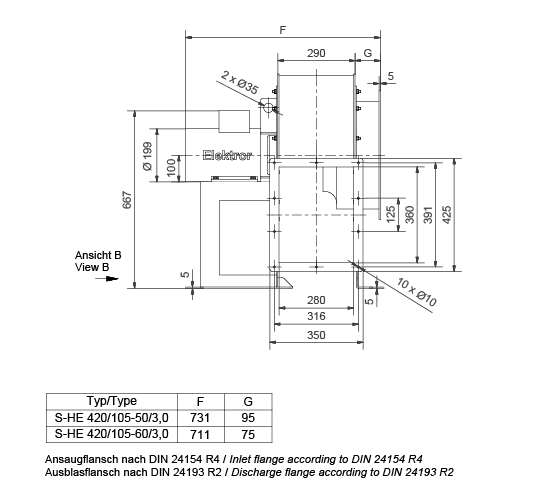

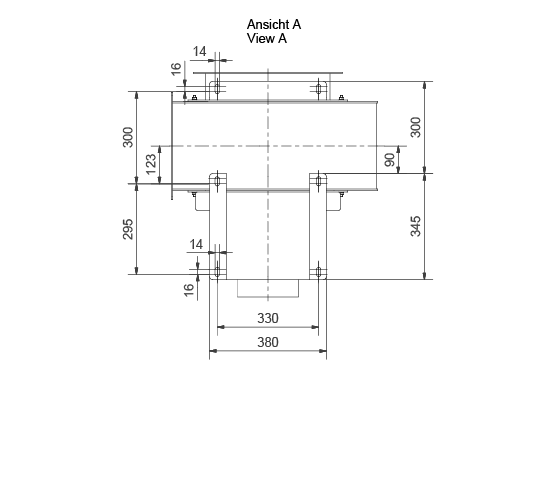

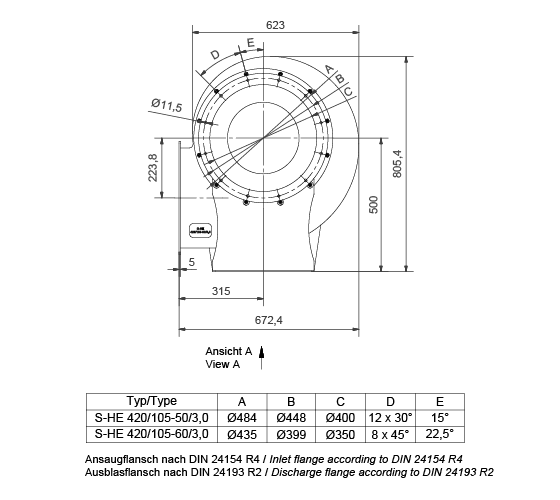

Technical drawings

Downloads

Instruction manual S-HE (de, en)

Instruction manual PDF 2 MB

KA_Elektror_S-HE_DE_EN.pdf

Catalogue PDF 2 MB

Accessories

S-HE 420/105 Enquire
