High Efficiency Blowers

S-HE 540/135

Up to 260 m³/min and 4,800 Pa. Highly efficient impellers bent backwards and made of steel. Very high level of effectiveness, low energy consumption. Housing made of steel. Variable connection possibilities.

Characteristic curves

Performance data

Efficiency class

Volume flow

Total pressure difference

Voltage

Frequency

Current consumption

Performance

Fan speed

Weight

-

m³/min

Pa

V

Hz

A

kW

min-1

kg

S-HE 540/135-50/15

IE3

260,9

4850

400/690

50

27,5/16,1

15

2950

287

Characteristic curves

Performance data

Efficiency class

Volume flow

Total pressure difference

Voltage

Frequency

Current consumption

Performance

Fan speed

Weight

-

m³/min

Pa

V

Hz

A

kW

min-1

kg

S-HE 540/135-60/15

IE3

233,4

5530

460

60

24,5

15

3560

280

S-HE 540/135-60/15

NEMA Premium

233,4

5530

460

60

24,5

15

3560

280

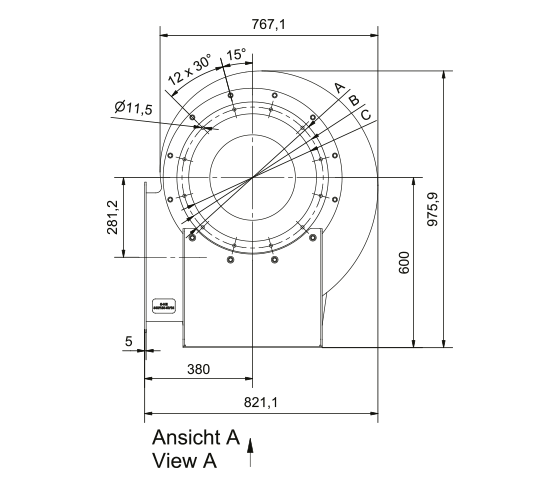

Technical drawings

Downloads

Instruction manual S-HE (de, en)

Instruction manual PDF 2 MB

Catalogue S-HE

Catalogue PDF 2 MB
