Radial Low Pressure Blowers

S-LP 215/92

Up to 115 m³/min and 3,050 Pa. Housing made of steel or stainless steel, drum impellers bent forward and made of galvanized sheet steel or stainless steel. In stainless steel execution: Niro-shaft and maximum corrosion-resistance. Variable connection possibilities.

Characteristic curves

Performance data

Efficiency class

Volume flow

Total pressure difference

Voltage

Frequency

Current consumption

Performance

Fan speed

Weight

-

m³/min

Pa

V

Hz

A

kW

min-1

kg

S-LP 215/92-50/3,00

IE3

60,0

1570

230/400

50

5,90

3,0

2900

32,0

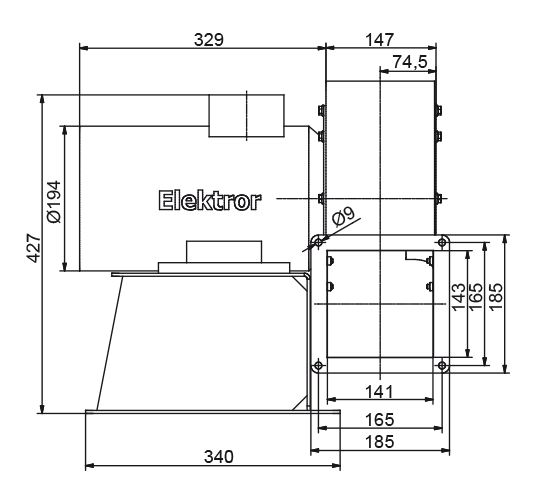

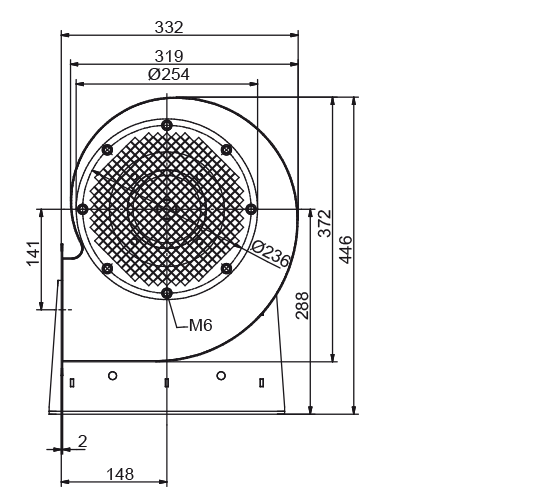

Technical drawings

Downloads

Catalogue S-LP

Catalogue PDF 5 MB

Betriebsanleitung S-LP (de, en)

Instruction manual PDF 2 MB
