Radial Medium Pressure Blowers
S-MP 425/31
Up to 180 m³/min and 10,000 Pa. Housing made of steel or stainless steel, impellers primarily bent backwards and made of stainless steel or aluminium. In stainless steel execution: Niro-shaft and maximum corrosion-resistance. Variable connection possibilities.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
S-MP 425/31-50/1,50
36,0
3250
230/400
50
5,50/3,20
1,5
2905
40,5
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
S-MP 425/31-60/1,80
38,0
3300
277/480
60
5,40/3,10
1,8
3505
40,5

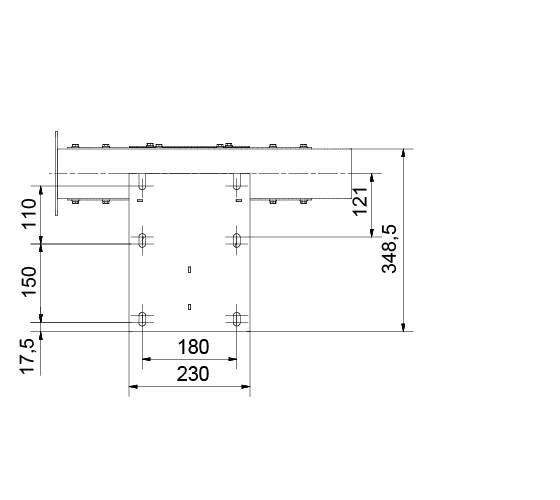

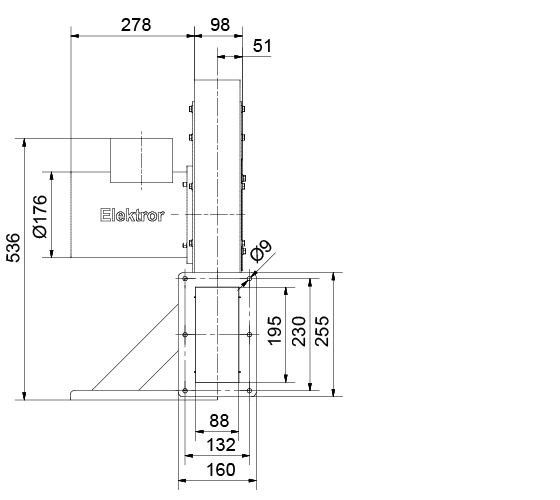

Technical drawings
Downloads
|
Instruction manual S-MP (fr, it, nl) |
Instruction manual | 2 MB | Download | |
|
Instruction manual S-MP (ru) |
Instruction manual | 2 MB | Download | |
|
Instruction manual S-MP (zh) |
Instruction manual | 2 MB | Download | |
|
Katalog S-MP |
Catalogue | 6 MB | Download | |
|
Betriebsanleitung S-MP (de, en) |
Instruction manual | 2 MB | Download | |
|
Instruction manual S-MP (DE, EN) |
Instruction manual | 6 MB | Download | |
|
Instruction manual S-MP (FR, IT, NL) |
Instruction manual | 7 MB | Download | |
|
Instruction manual S-MP (PL, RU) |
Instruction manual | 6 MB | Download | |
|
Instruction manual S-MP (ZH) |
Instruction manual | 5 MB | Download | |
|
Datenblatt/Datasheet S-MP 425/31 |
Catalogue | 346 KB | Download |
