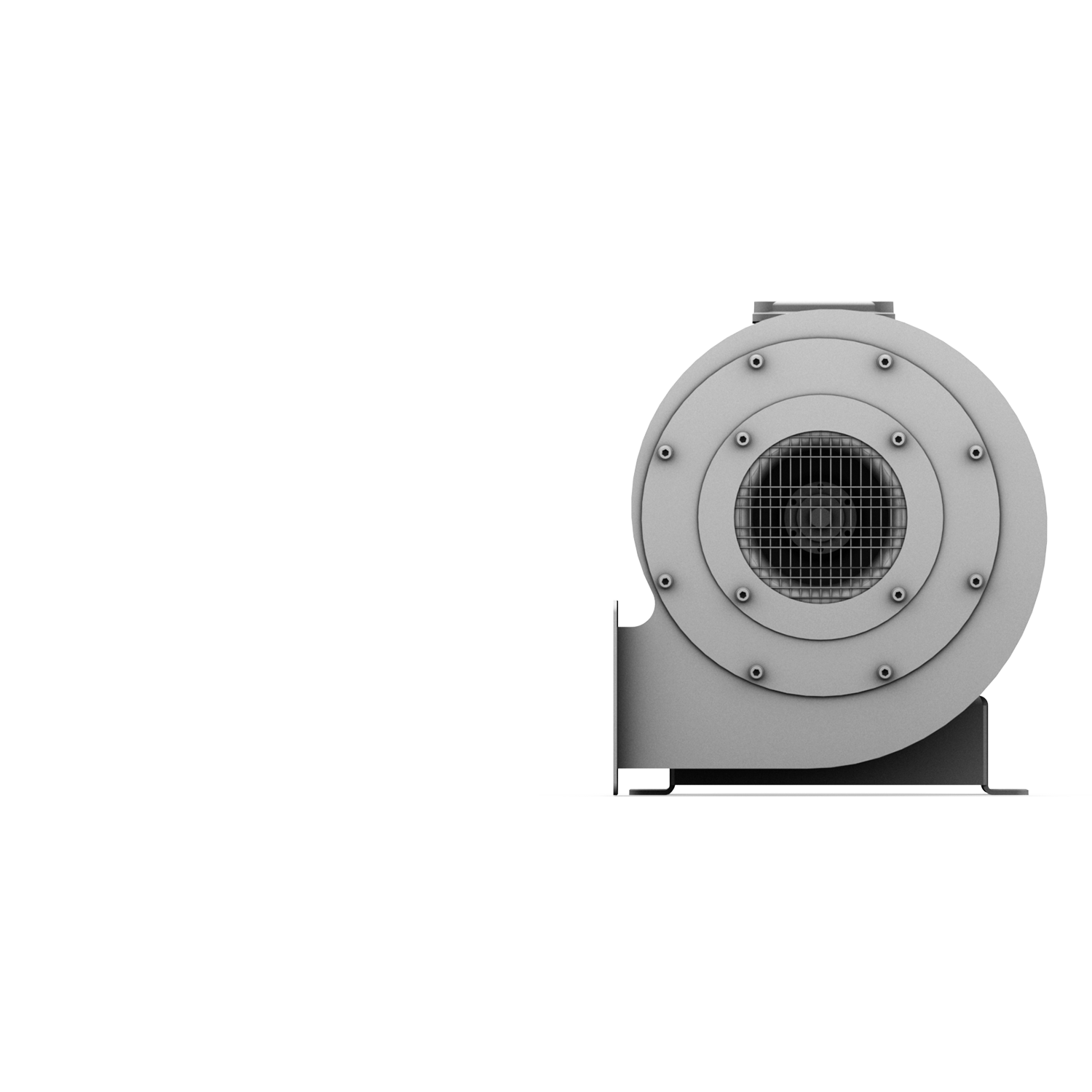

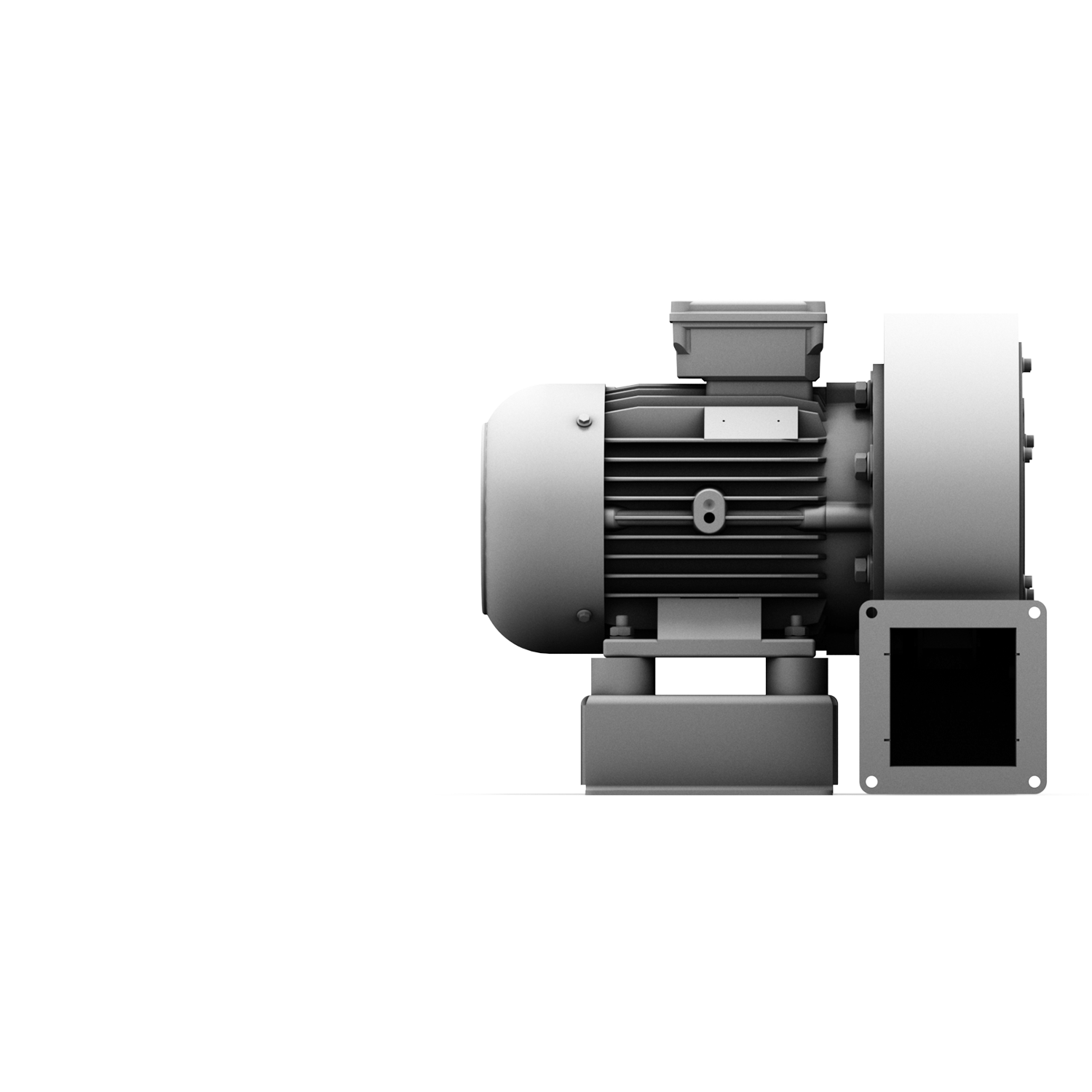

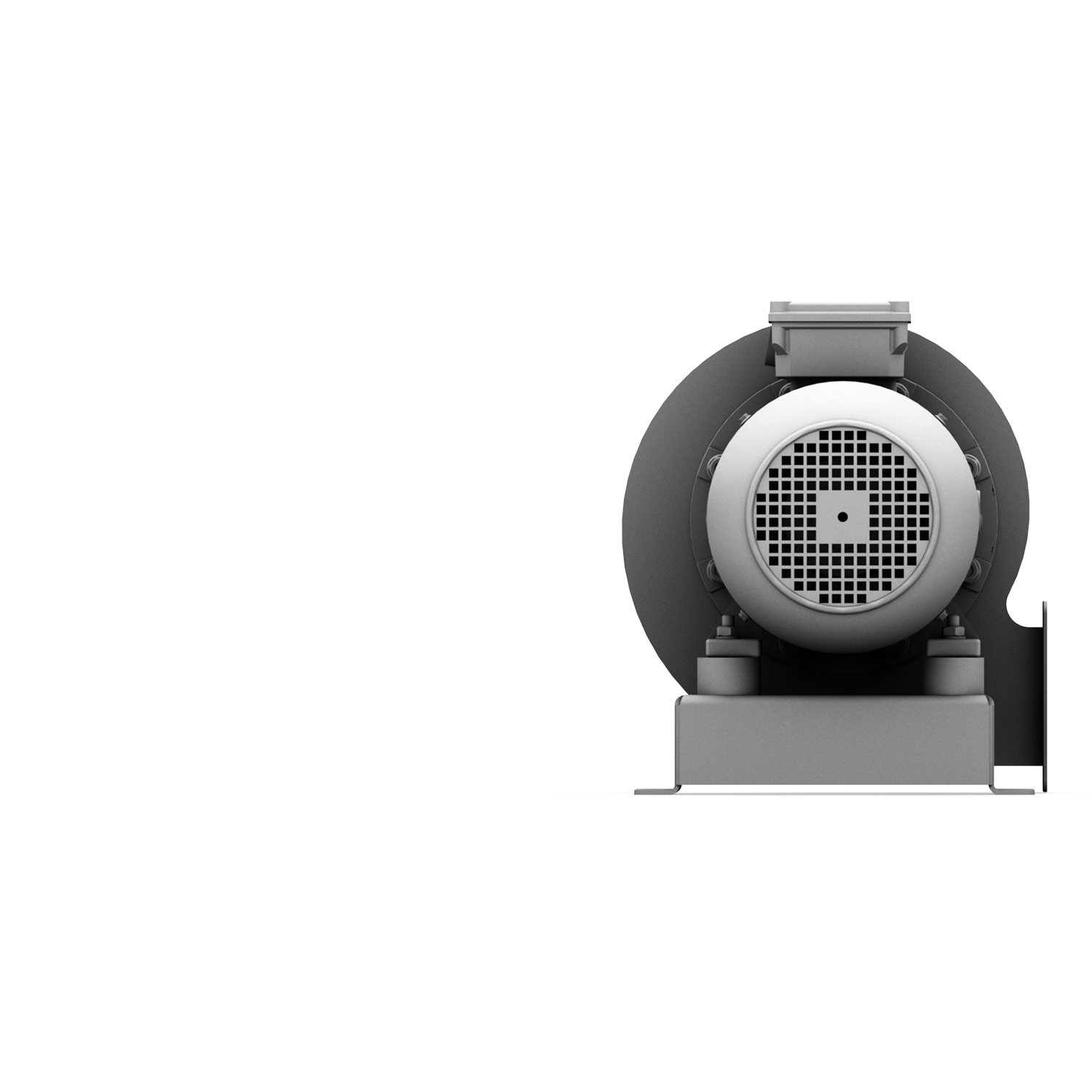

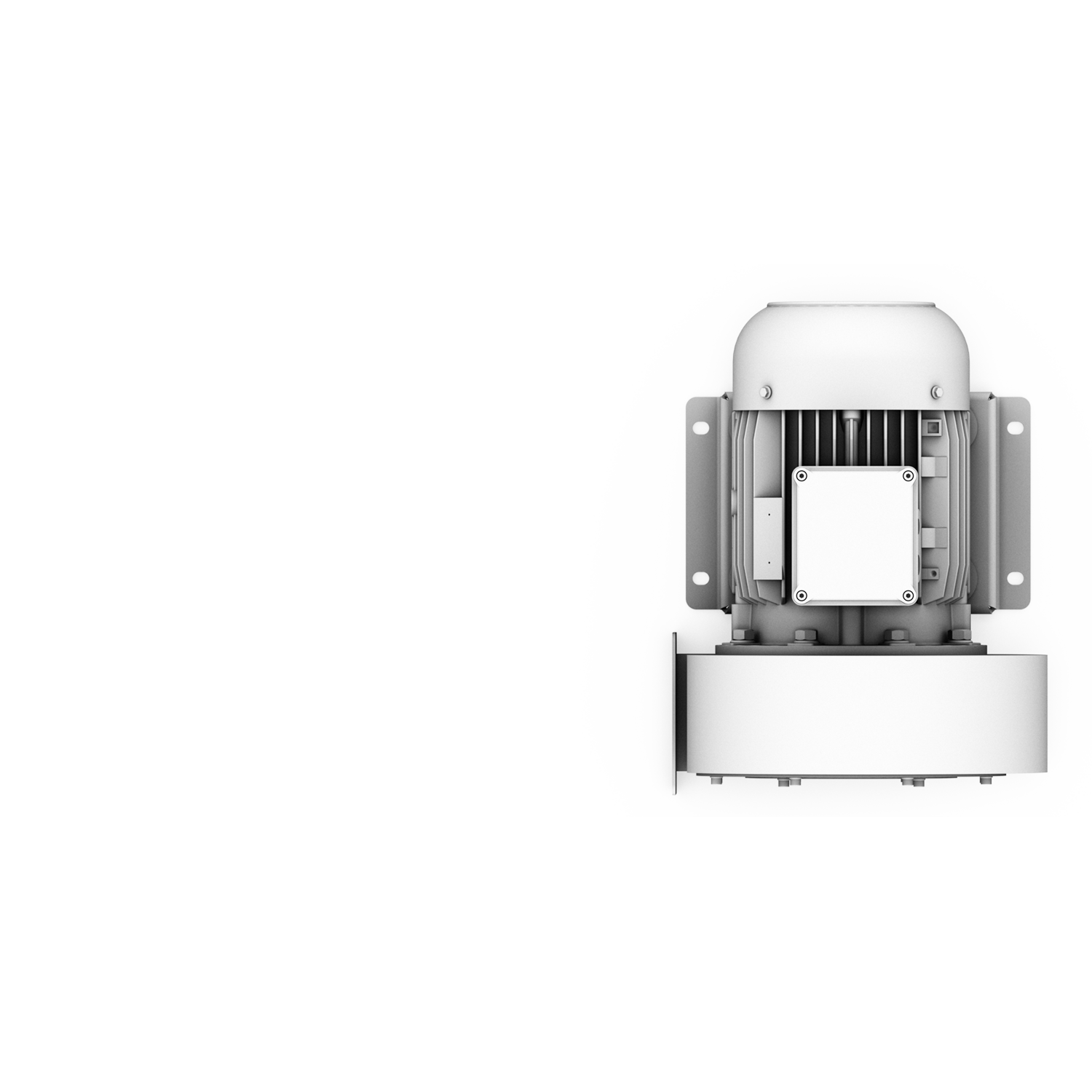

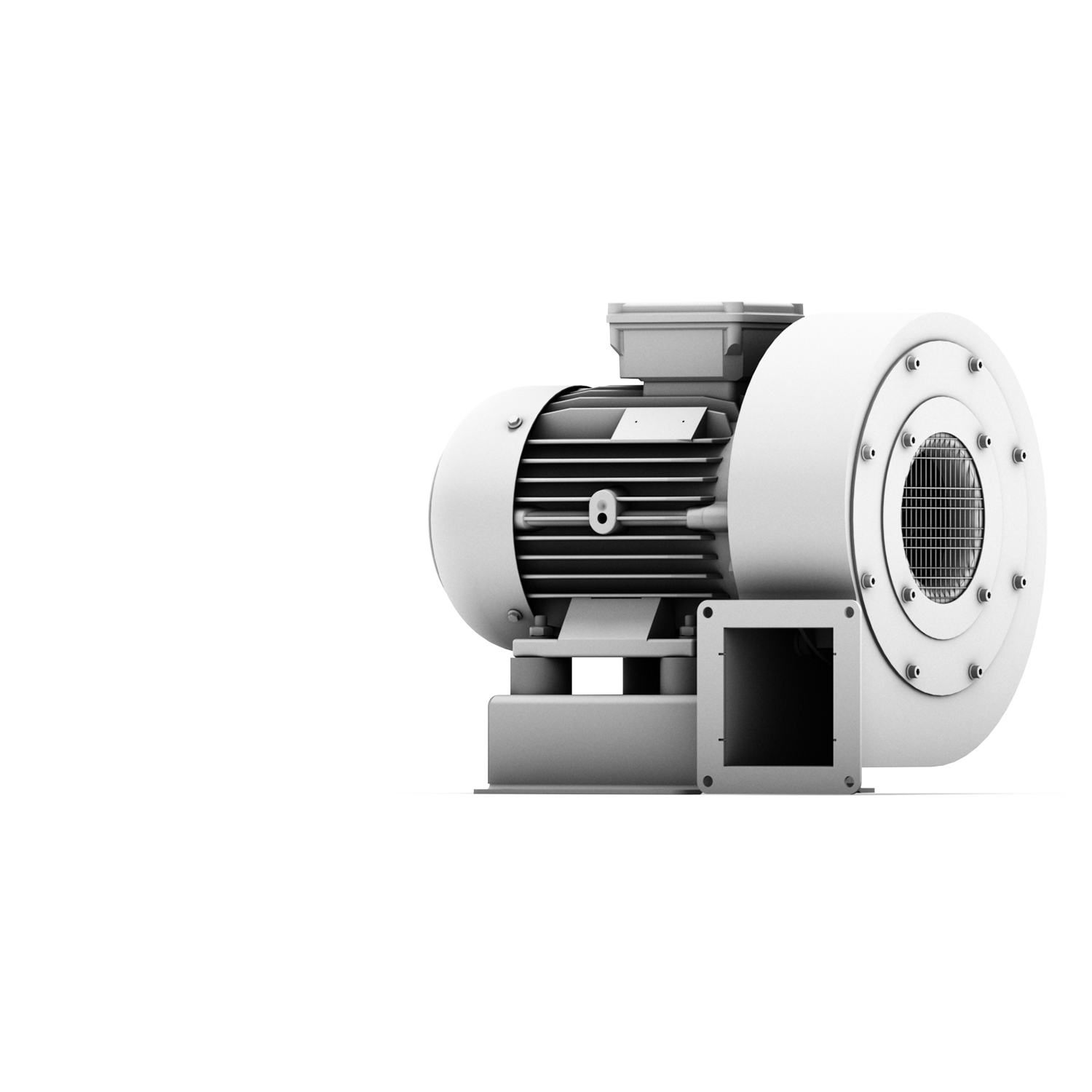

S-XP 245/20

Bis 40 m³/min und 16.300 Pa. Verschleißfreier, direkter Antrieb über abgesetzte (FU) Frequenzumrichter. Hochdrehend bis 200 Hz (ca. 12.000 U/min). Gehäuse aus Stahl oder Edelstahl, rückwärtsgekrümmte Laufräder aus hochfestem Aluminium, Hybridlager, weitgehend korrosionsbeständig. Variable Anschlussmöglichkeiten.

Characteristic curves

Performance data

Efficiency class

Volume flow

Total pressure difference

Volume flow (negative pressure)

Total pressure difference (negative pressure)

Voltage

Frequency

Current consumption

Performance

Fan speed

Weight

-

m³/min

Pa

m³/min

Pa

V

Hz

A

kW

min-1

kg

S-XP 245/20-250/18,50

-

42

22000

44

21500

400

250

38

18,5

14600

56

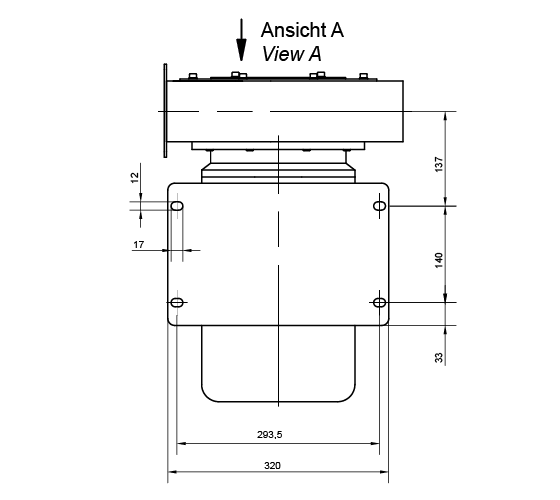

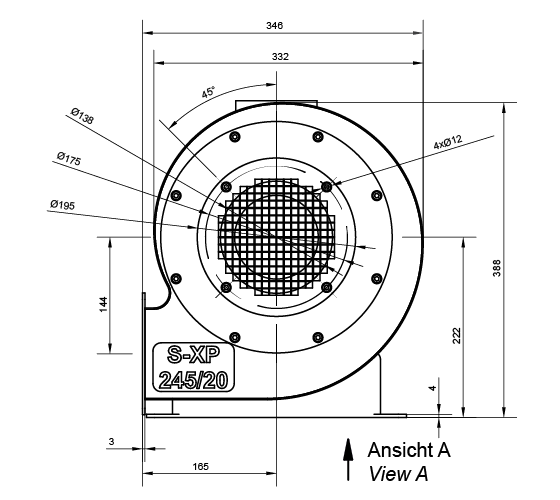

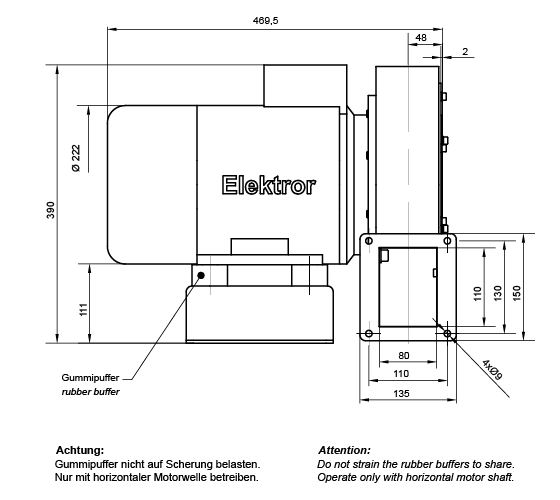

Technical drawings

Downloads

Catalogue 1SD/2SD

Catalogue PDF 8 MB

Instruction manual S-XP (de, en)

Instruction manual PDF 2 MB

Instruction manual S-XP (zh)

Instruction manual PDF 2 MB

KI_Instructions_on_the_use_S-XP_HRD_boosted_EN_V2.pdf

Instruction manual PDF 2 MB
