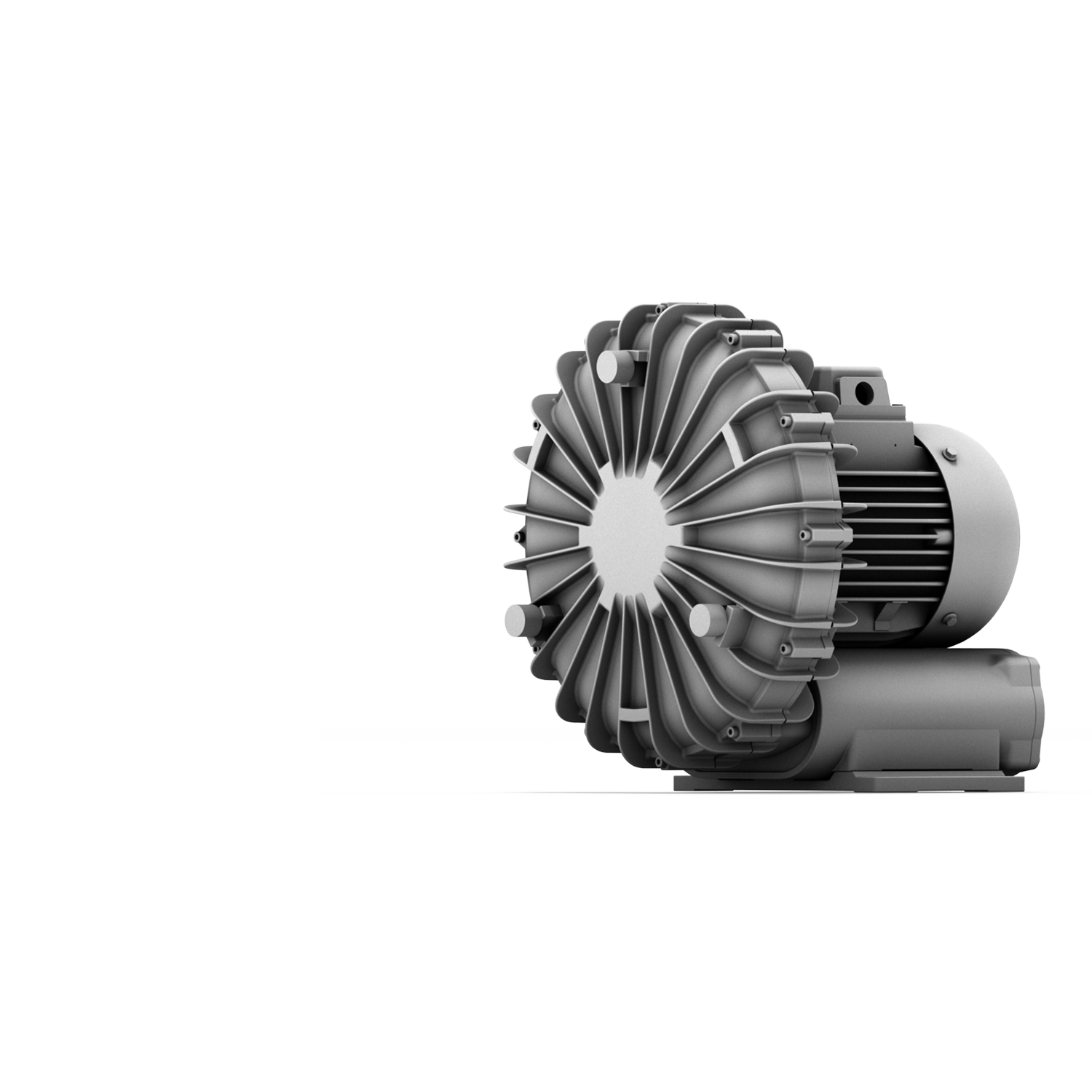

Single Stage Side Channel Blowers

SD 420

Up to 19 m³/min and 410 mbar. Housing and open/closed impellers made of cast aluminium. Direct motor, integrated silencer, compact construction, mostly corrosion-resistant.

Characteristic curves

Performance data

Efficiency class

Volume flow

Total pressure difference

Volume flow (negative pressure)

Total pressure difference (negative pressure)

Voltage

Frequency

Current consumption

Performance

Motor speed

Fan speed

Weight

Sound pressure level

-

m³/min

Pa

m³/min

Pa

V

Hz

A

kW

min-1

min-1

kg

dB (A)

SD 420

-

2,8

34000

2,8

26000

207-253/360-440

50

6,50-7,20/3,75-4,15

1,8

2910

2910

27

62

Characteristic curves

Performance data

Efficiency class

Volume flow

Total pressure difference

Volume flow (negative pressure)

Total pressure difference (negative pressure)

Voltage

Frequency

Current consumption

Performance

Motor speed

Fan speed

Weight

Sound pressure level

-

m³/min

Pa

m³/min

Pa

V

Hz

A

kW

min-1

min-1

kg

dB (A)

SD 420

-

3,2

36000

3,2

28000

255-300/440-520

60

7,30-7,80/4,20-4,50

2,64

3480

3480

27

65

SD 420

IE3

3,2

36000

3,2

28000

277/480

60

7,60/4,40

2,64

3480

3480

27

65

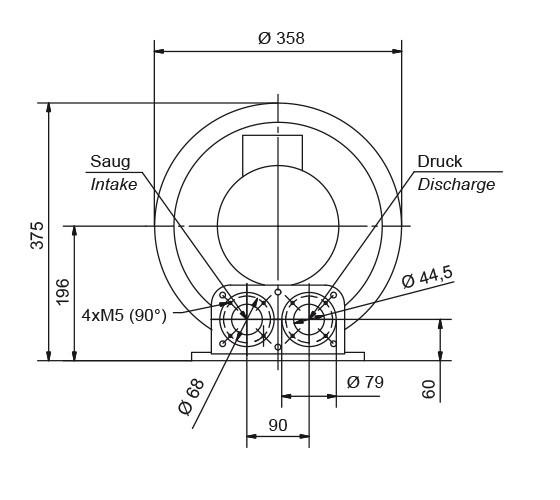

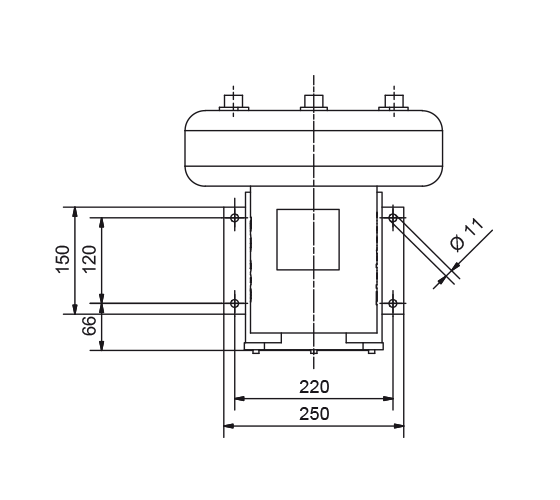

Technical drawings
