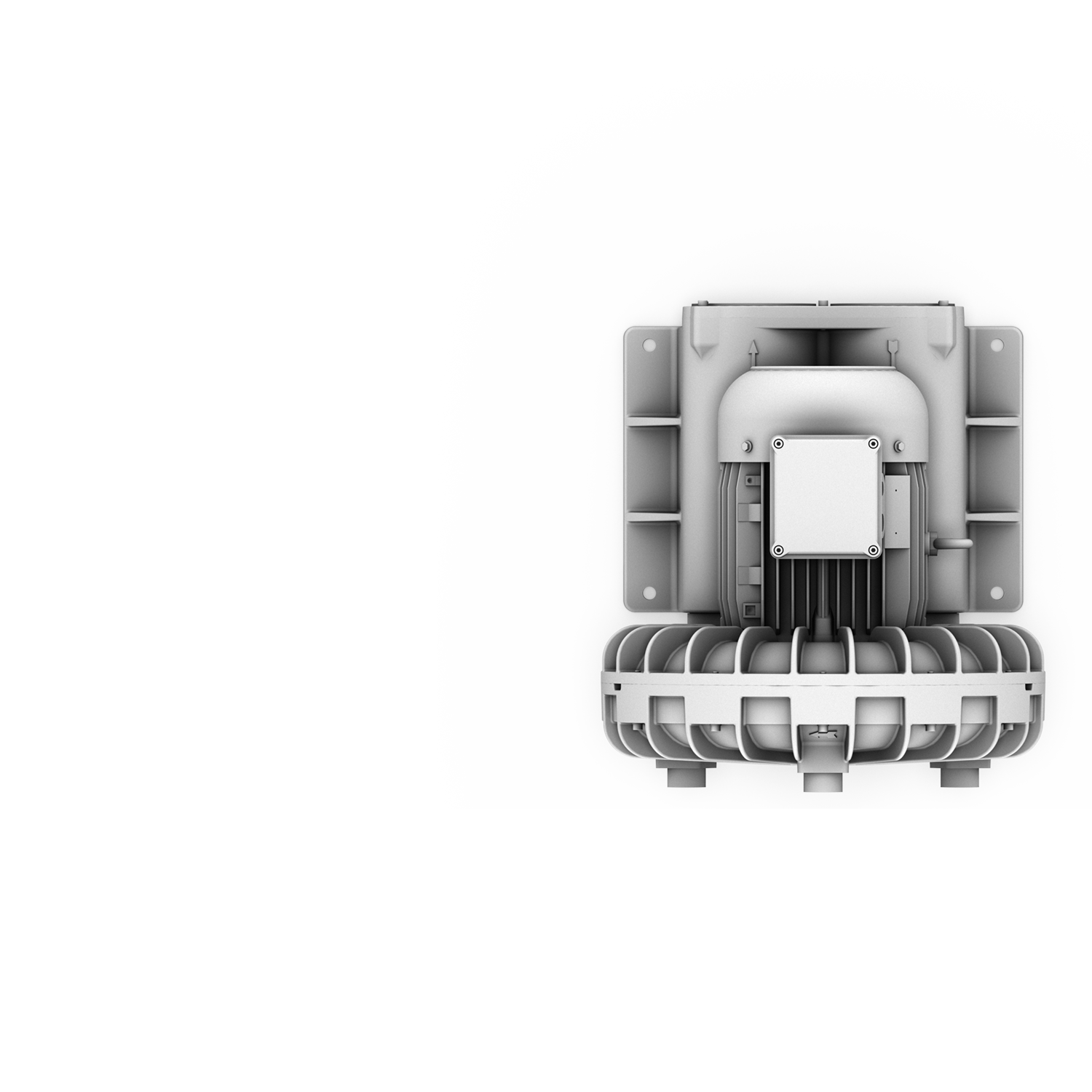

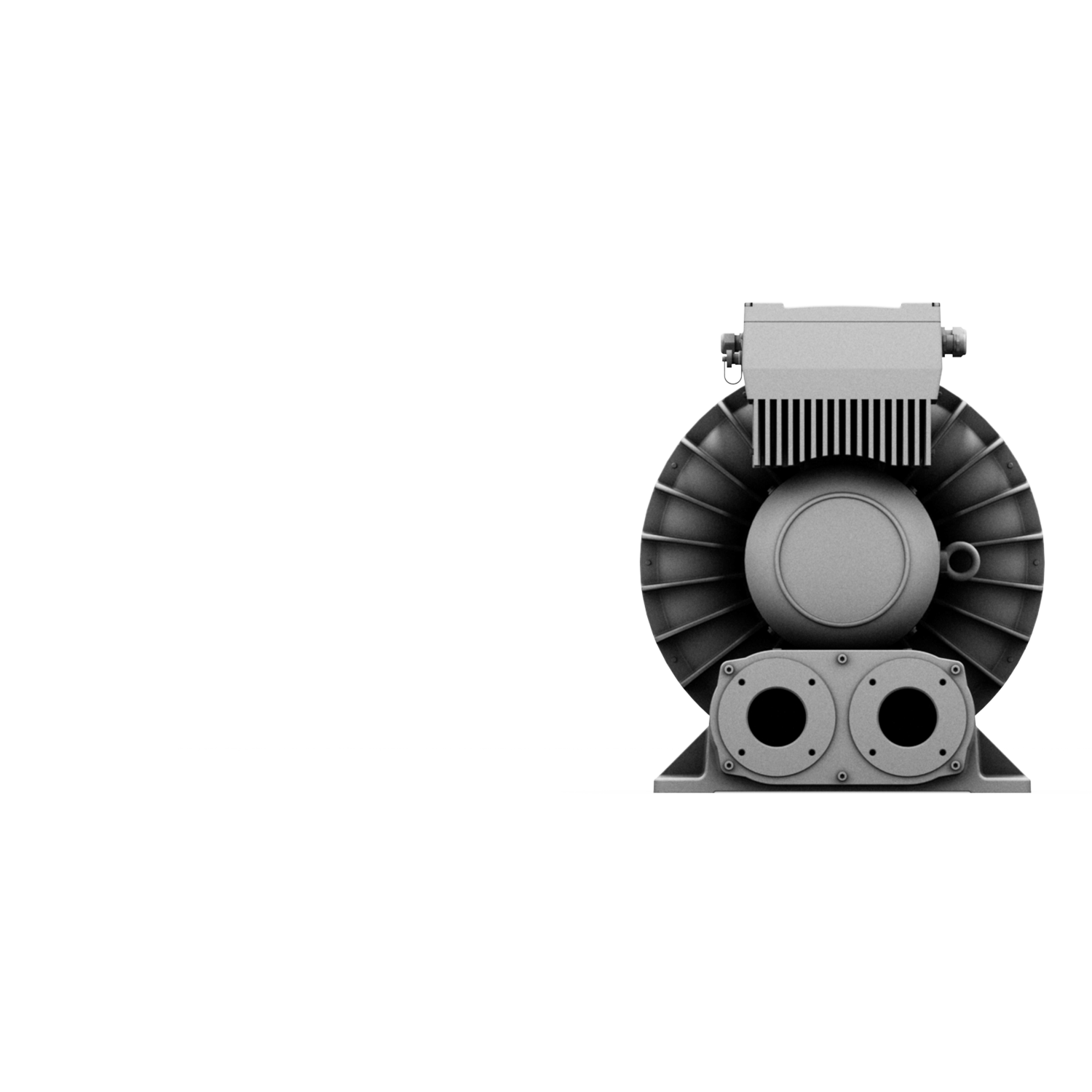

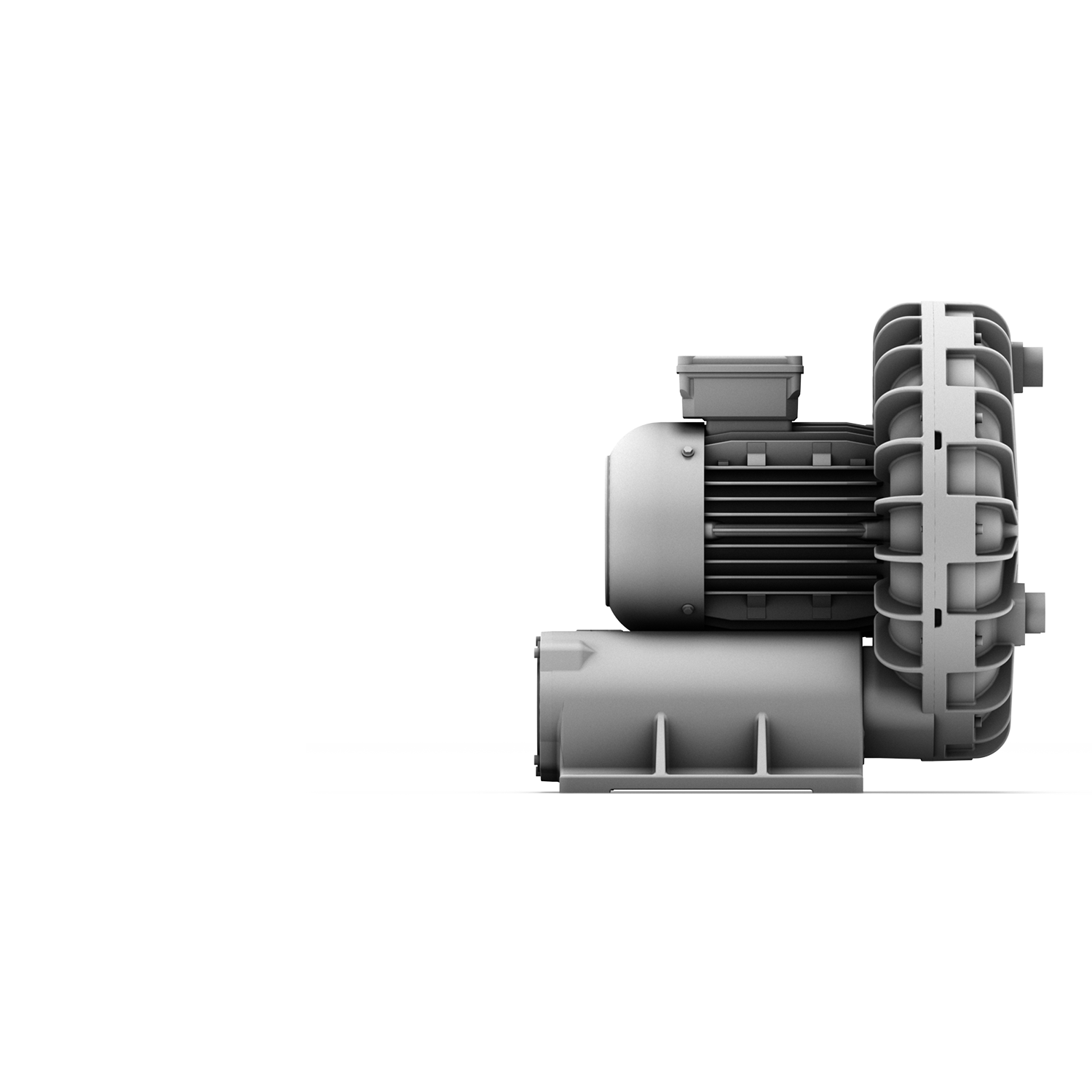

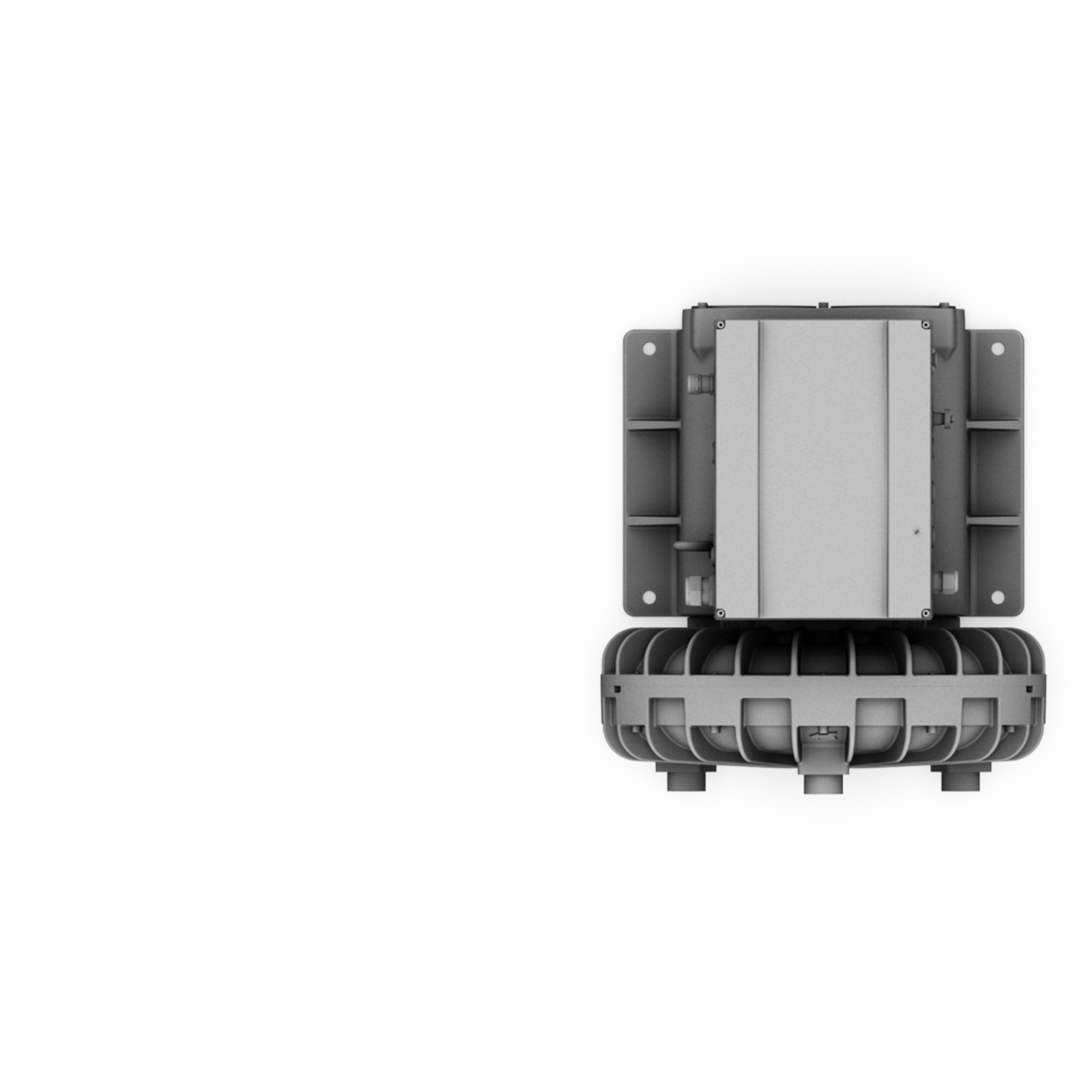

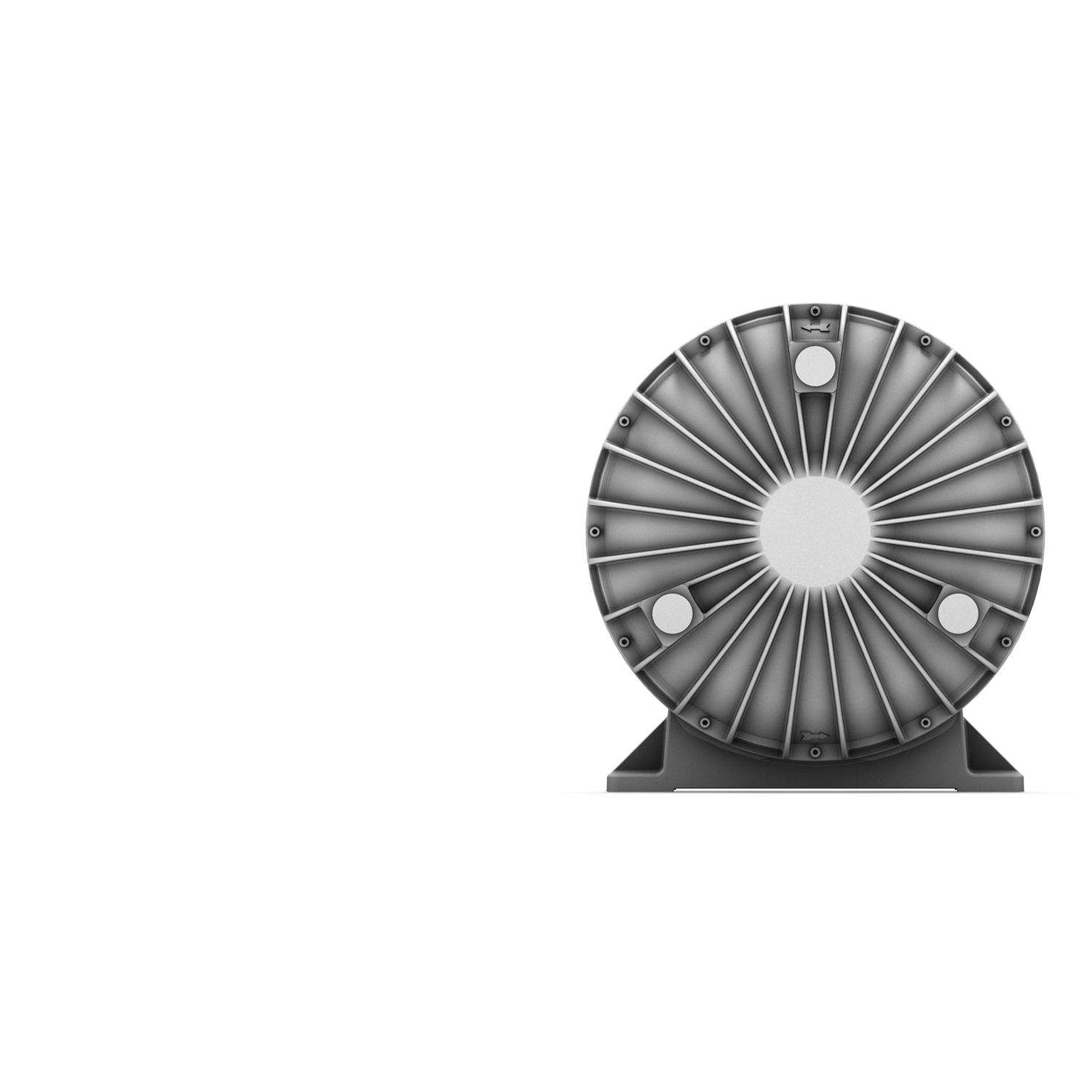

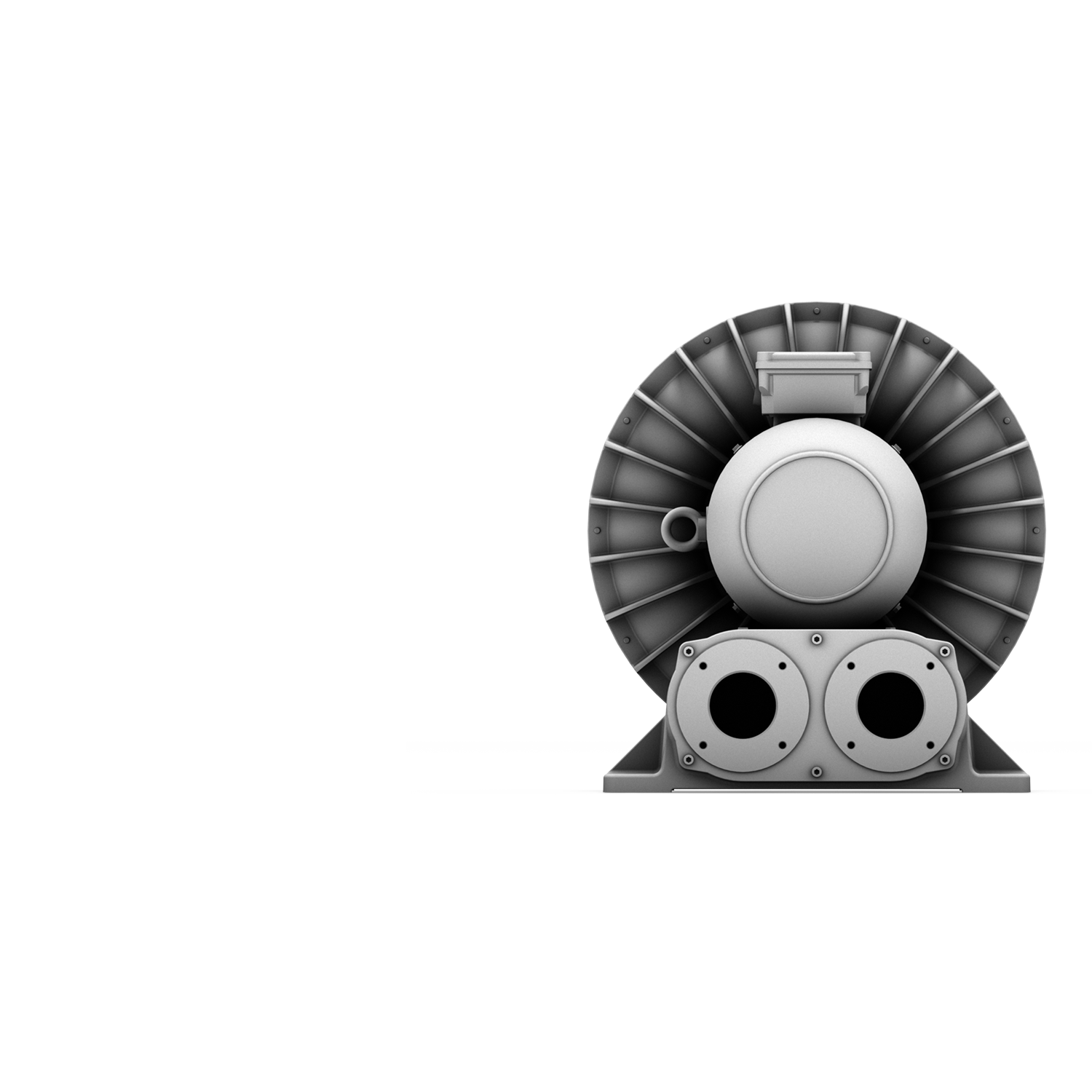

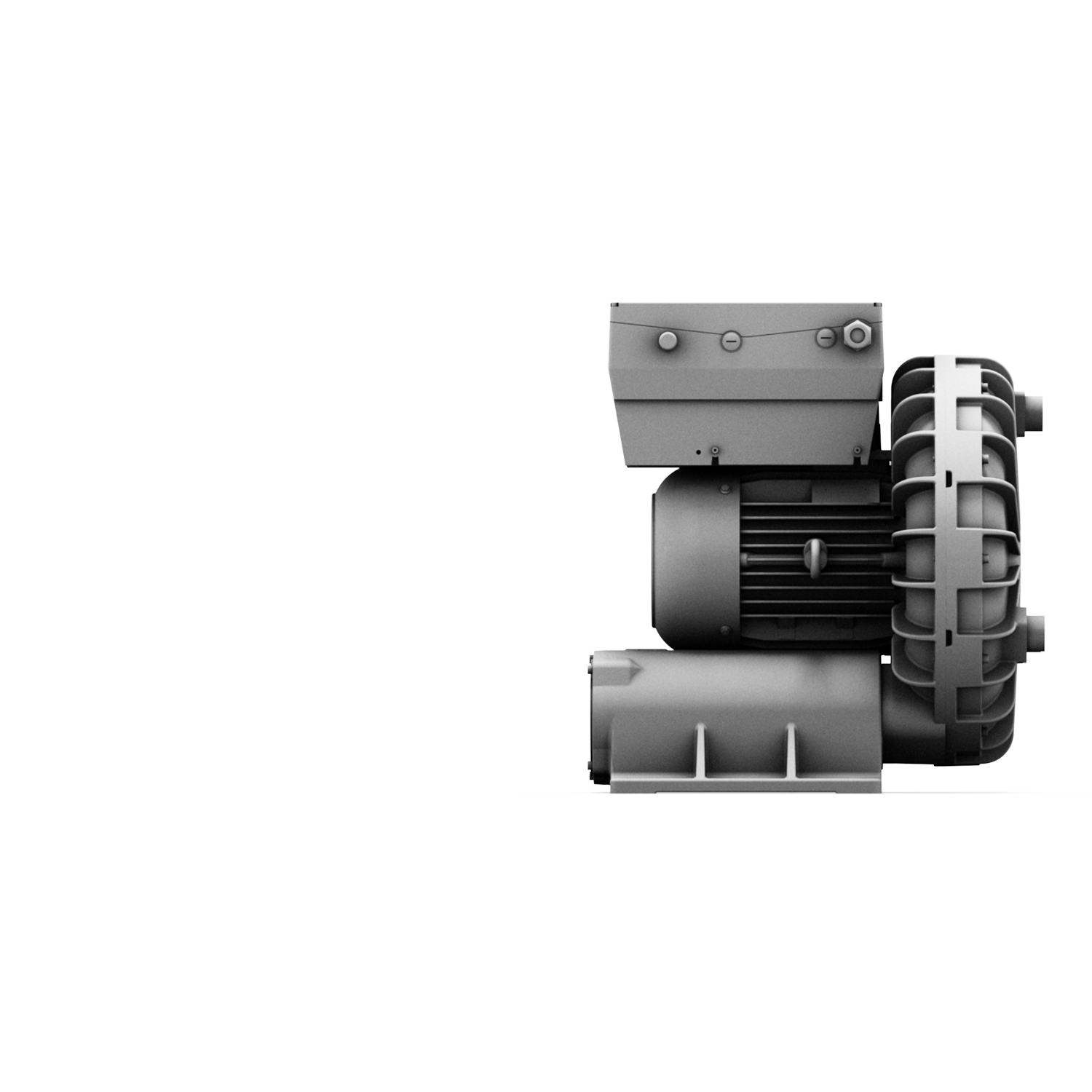

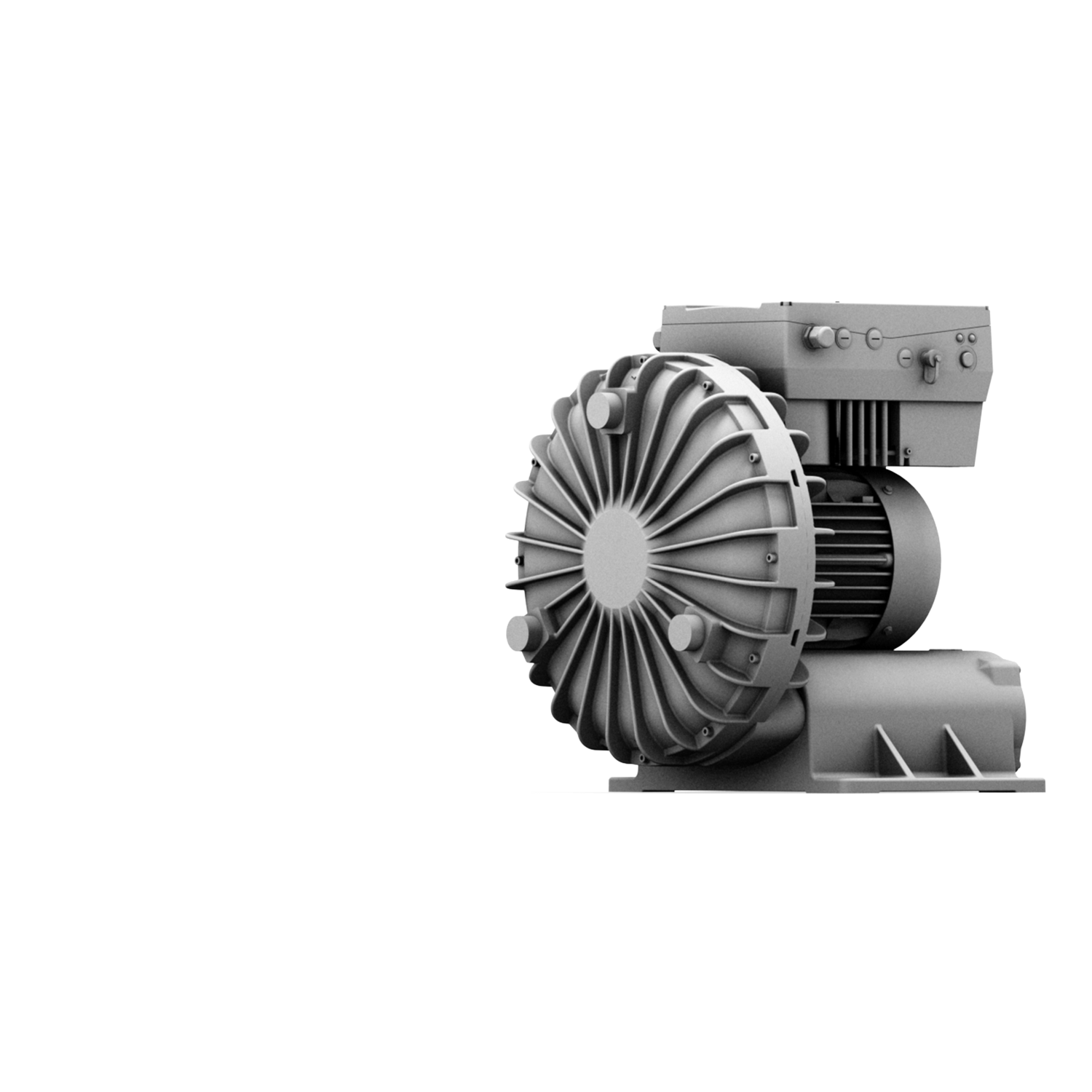

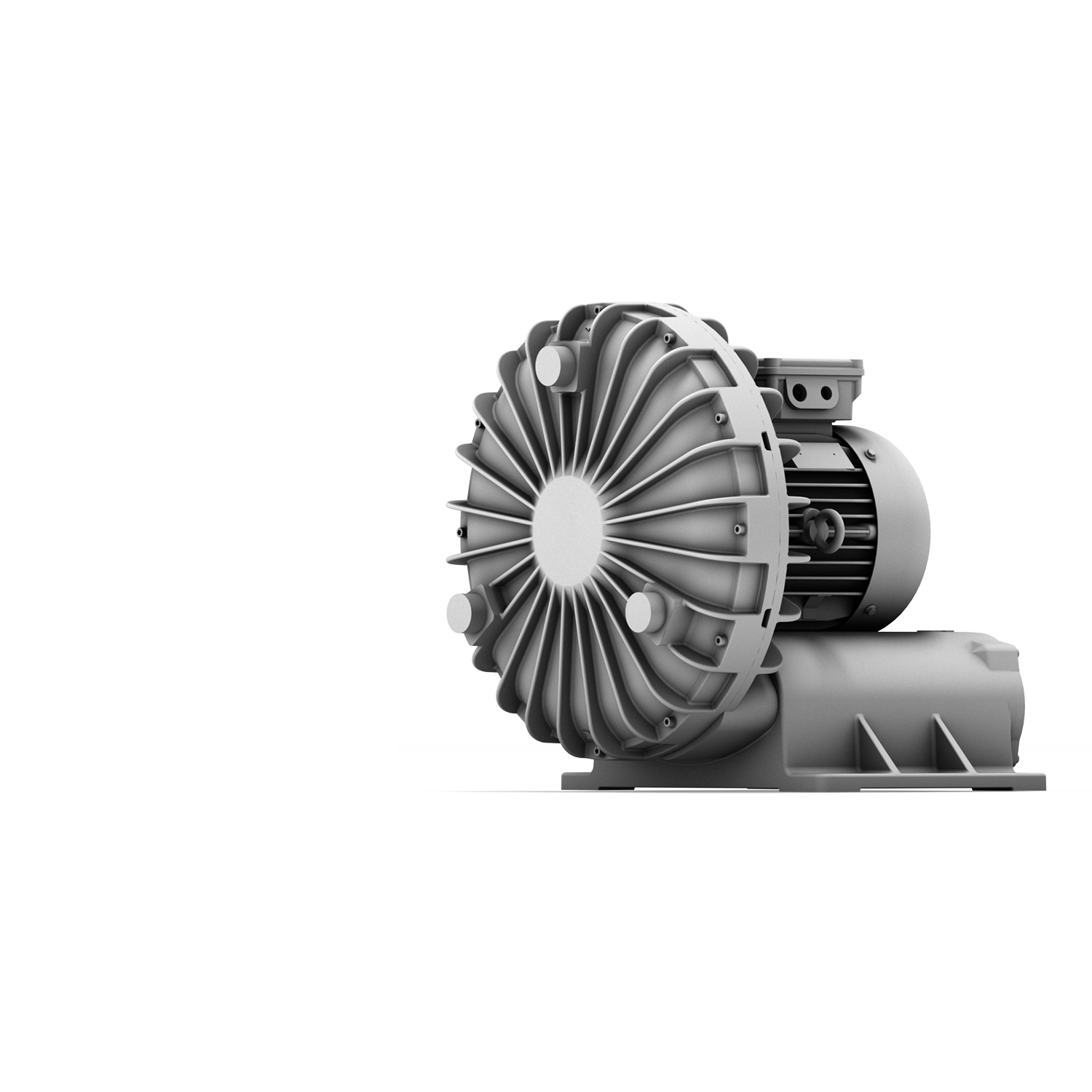

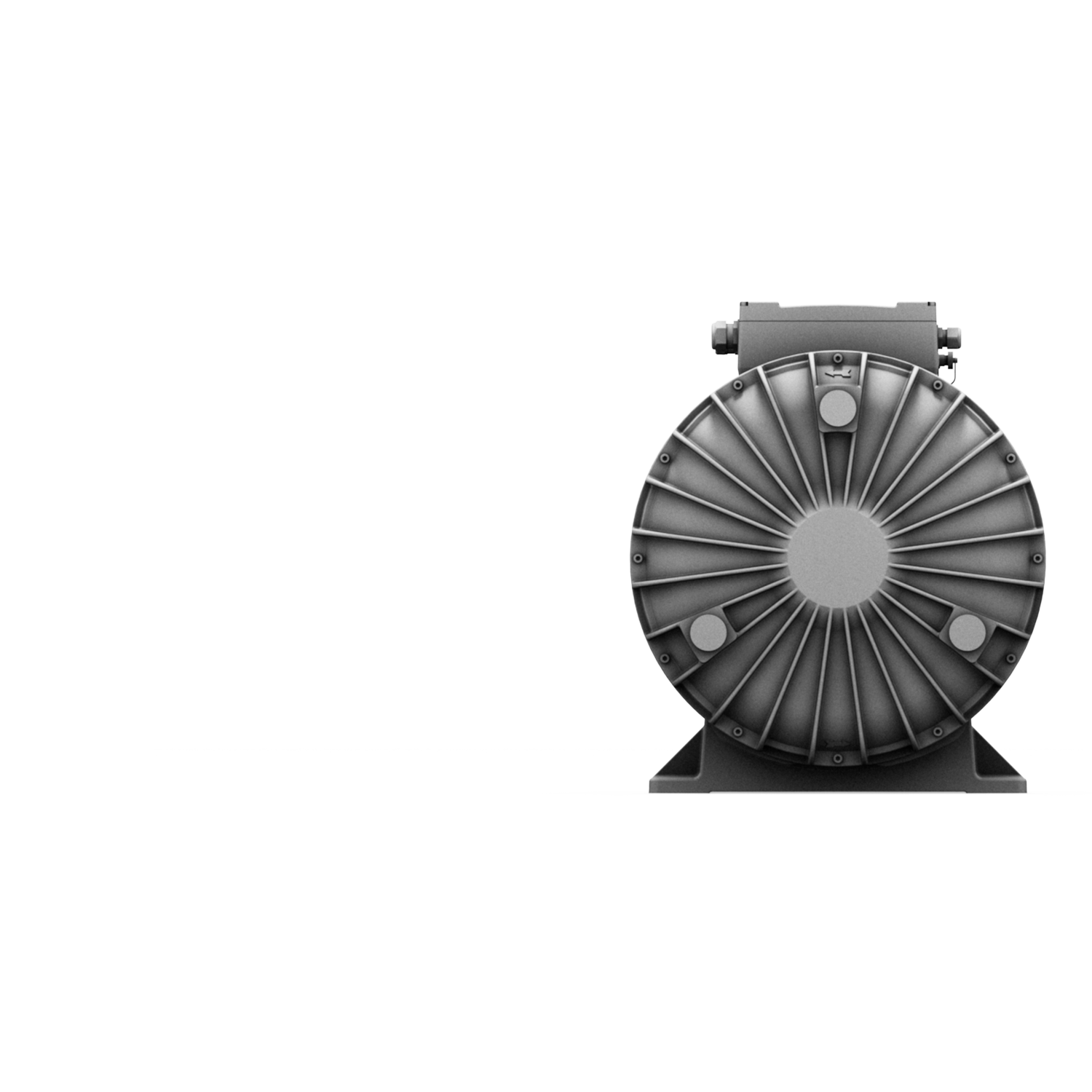

Single Stage Side Channel Blowers with frequency converter

SD 7 FU/FUK

Up to 10.5 m³/min and 370 mbar. Wear-free, direct drive via offset (FU) or mounted (FUK) frequency converter. Accelerates up to 80 Hz (approx. 4,700 rpm). Housing and open/closed impellers made of cast aluminium. Integrated silencer, compact construction, mostly corrosion-resistant.

Characteristic curves

Performance data

Efficiency class

Volume flow

Total pressure difference

Volume flow (negative pressure)

Total pressure difference (negative pressure)

Voltage

Frequency

Current consumption

Performance

Motor speed

Fan speed

Weight

-

m³/min

Pa

m³/min

Pa

V

Hz

A

kW

min-1

min-1

kg

SD 7 FU/FUK-80/7,5

-

10,5

24000

10,5

28000

400

80

17,0

7,5

4730

4730

63

Characteristic curves

Performance data

Efficiency class

Volume flow

Total pressure difference

Volume flow (negative pressure)

Total pressure difference (negative pressure)

Voltage

Frequency

Current consumption

Performance

Motor speed

Fan speed

Weight

-

m³/min

Pa

m³/min

Pa

V

Hz

A

kW

min-1

min-1

kg

SD 7 FU/FUK-80/7,5

-

10,5

24000

10,5

28000

400

80

17,0

7,5

4730

4730

73

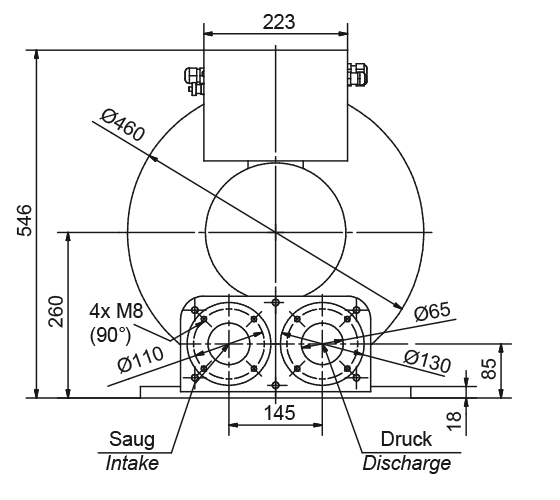

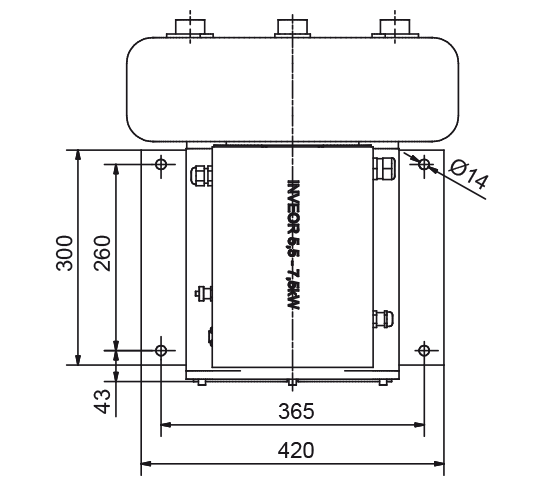

Technical drawings

Accessories

SD 7 FU/FUK Enquire
