Discharge connector
Transition piece for tube and pipe connections on the discharge side.

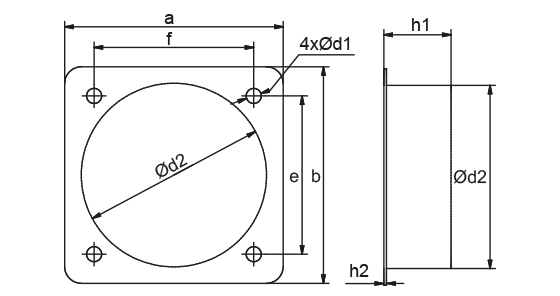

Discharge connector for tube connection
S-MP 250/25
a
b
Anzahl x Ø d1
Ø d2
e
f
h1
h2
Stainless steel welded
article number
130 mm
130 mm
4 x 9 mm
110 mm
95 mm
95 mm
40 mm
1,5 mm
Edelstahl geschweißt
9021496
