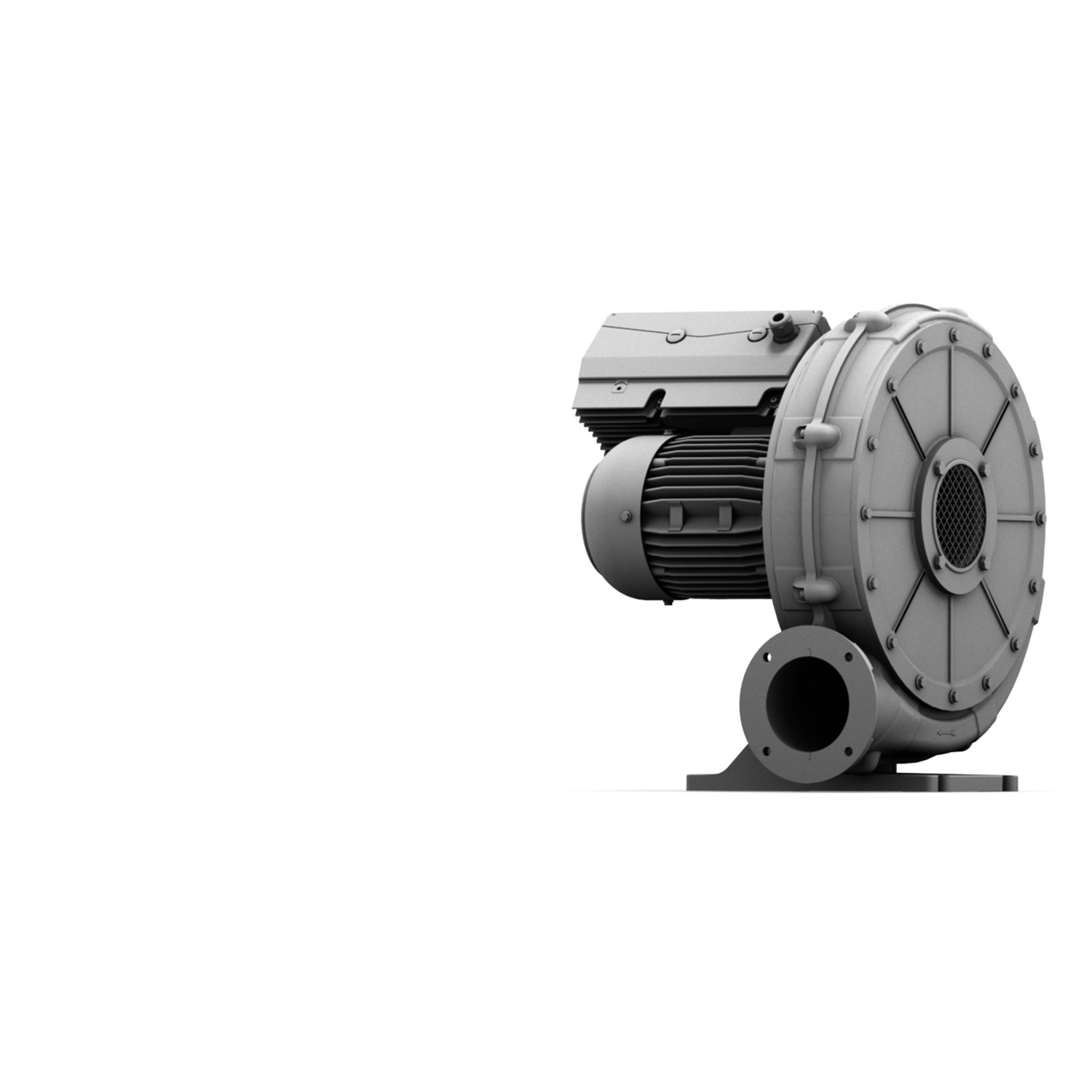

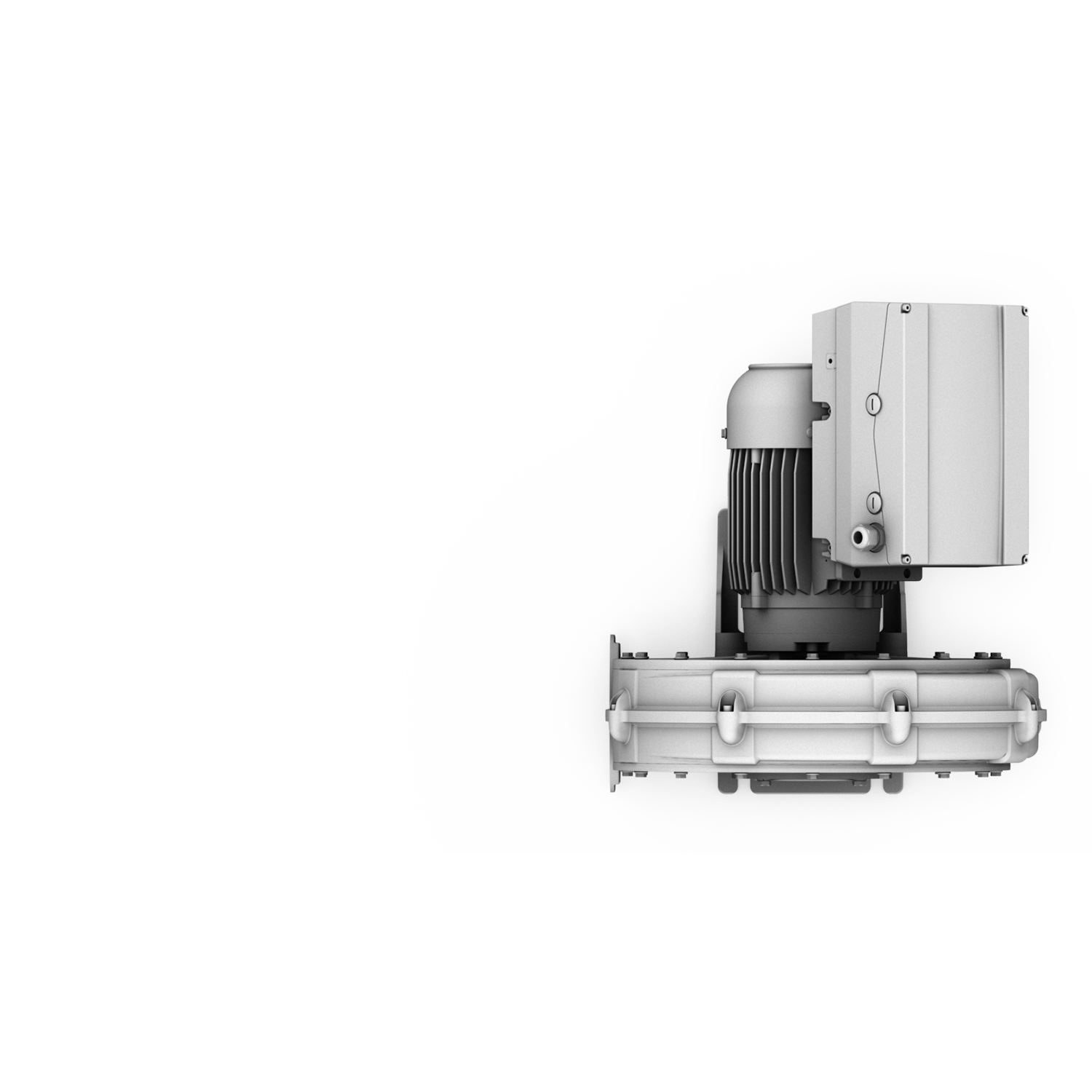

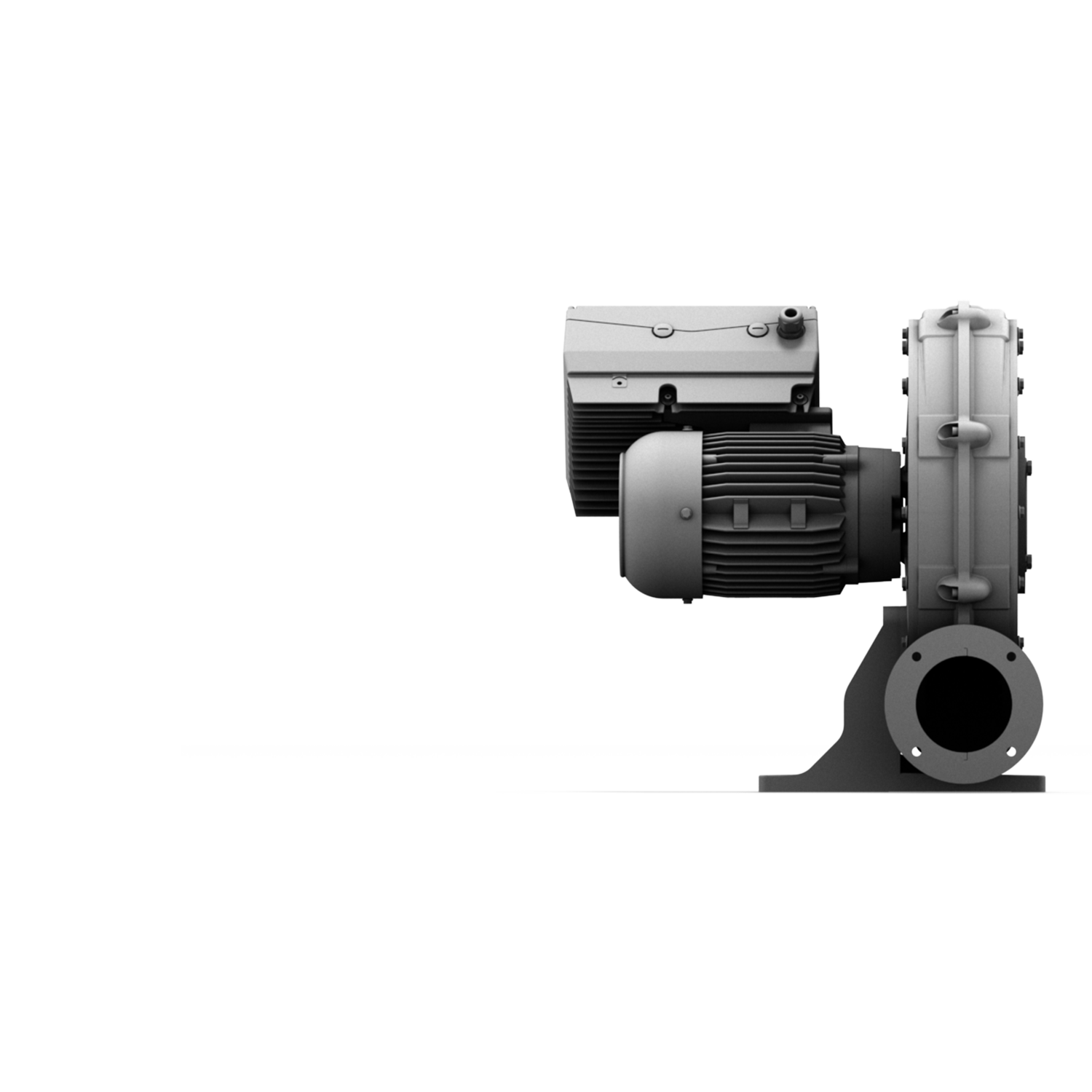

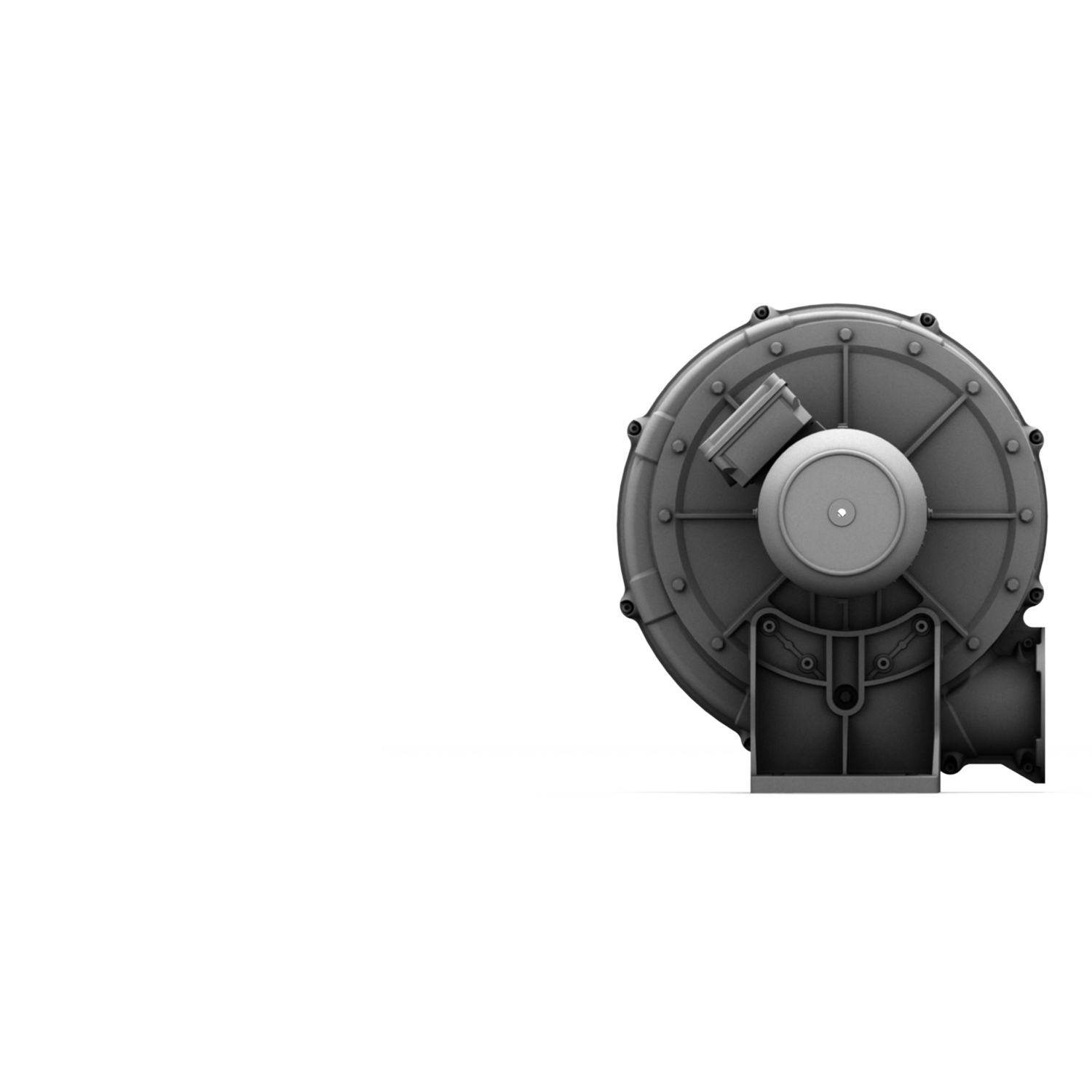

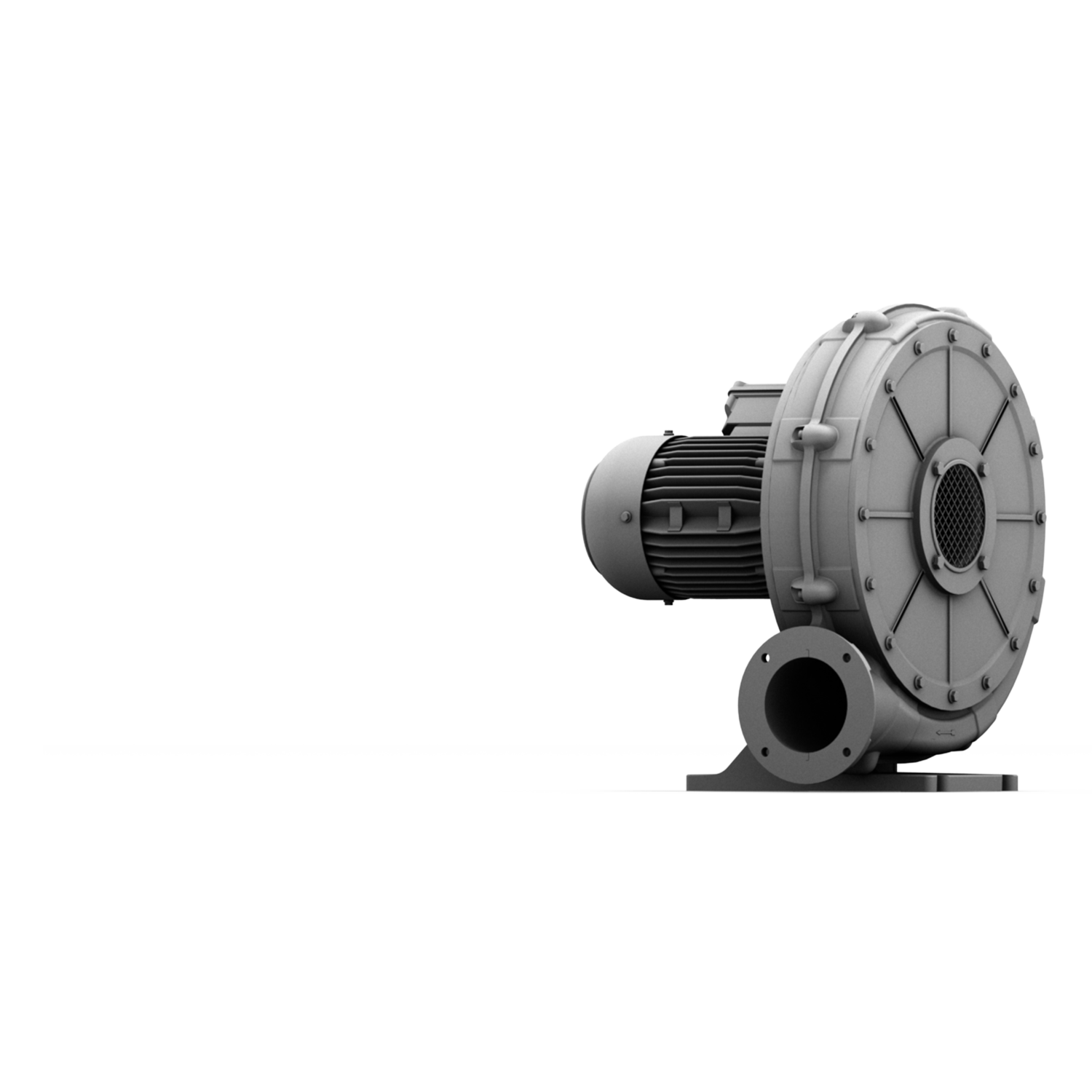

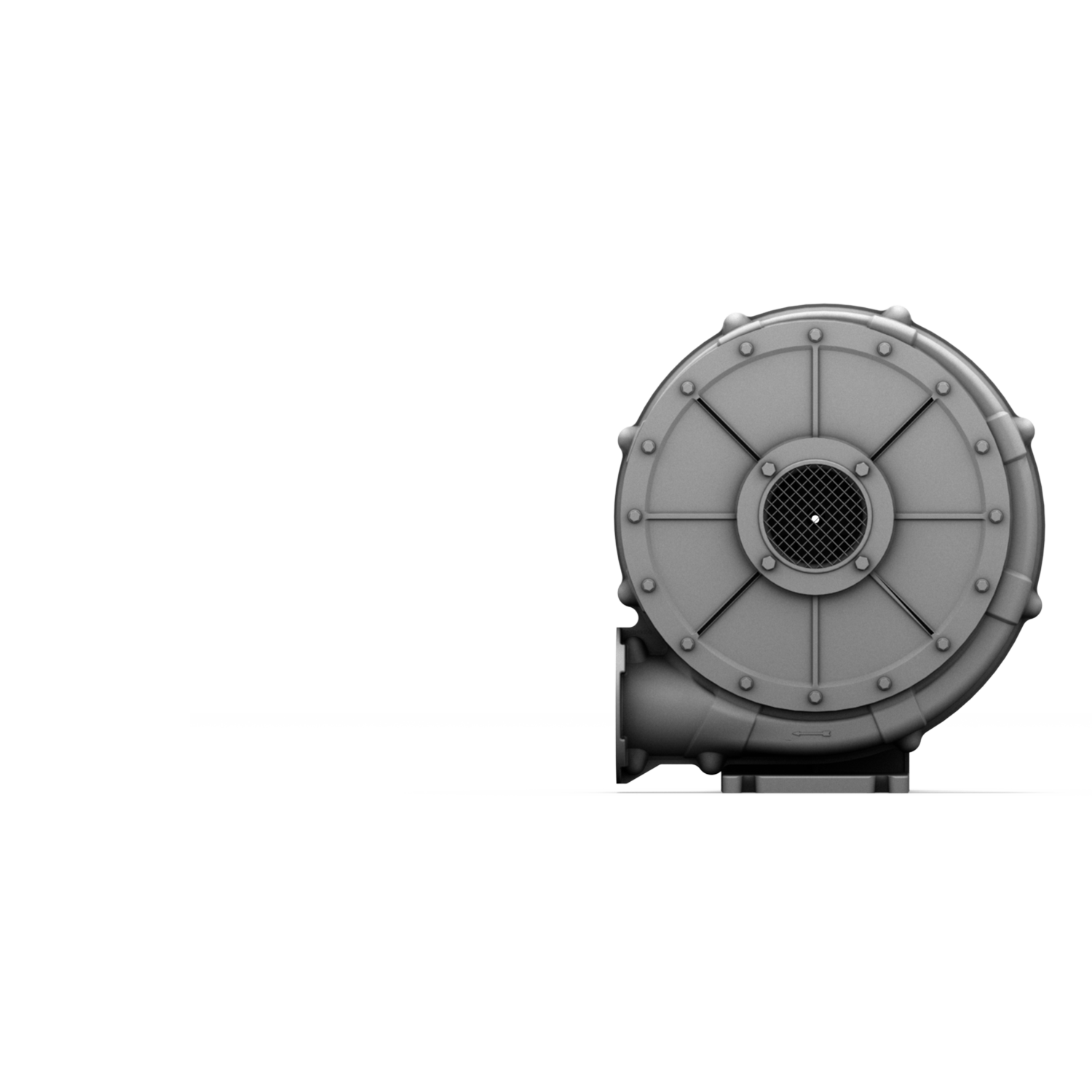

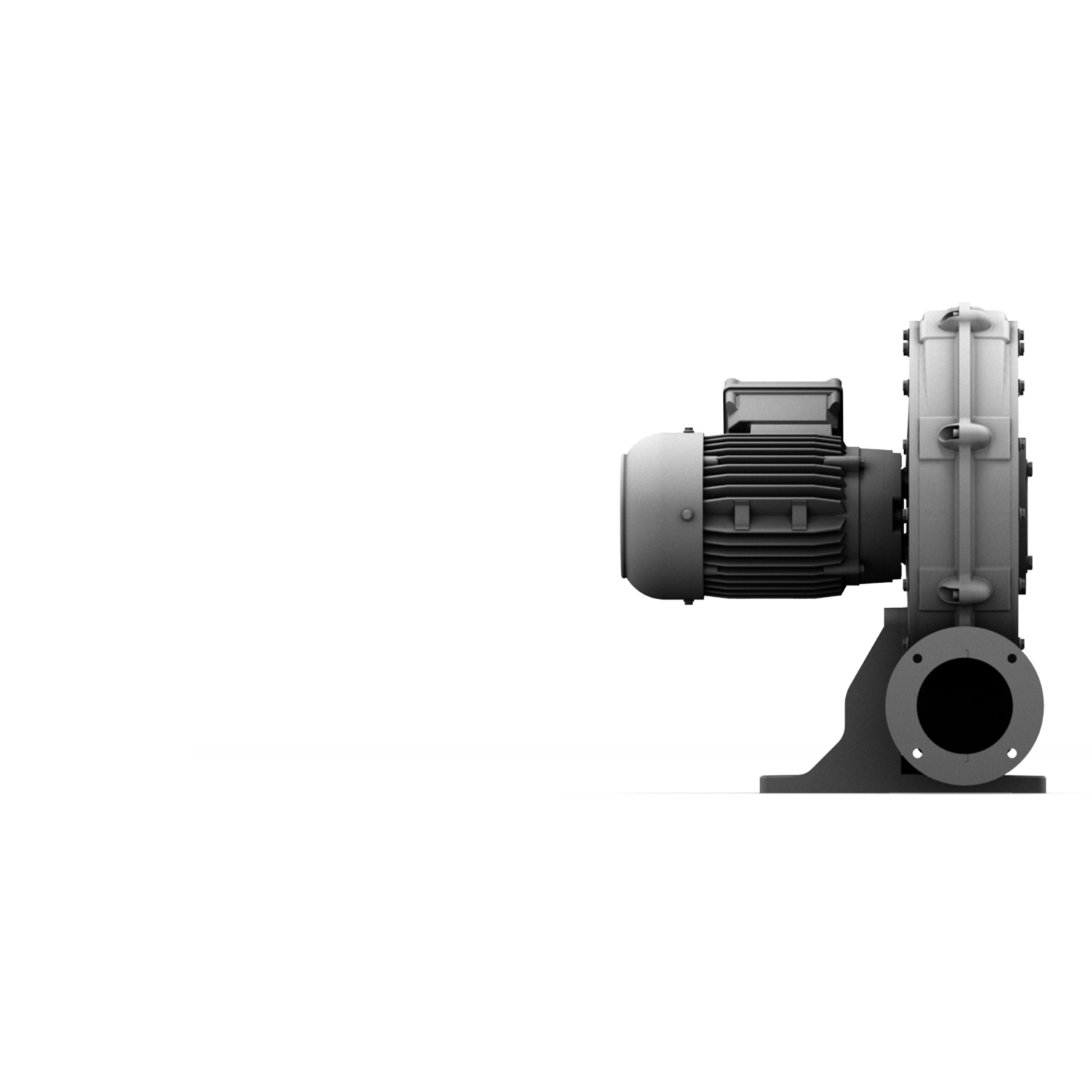

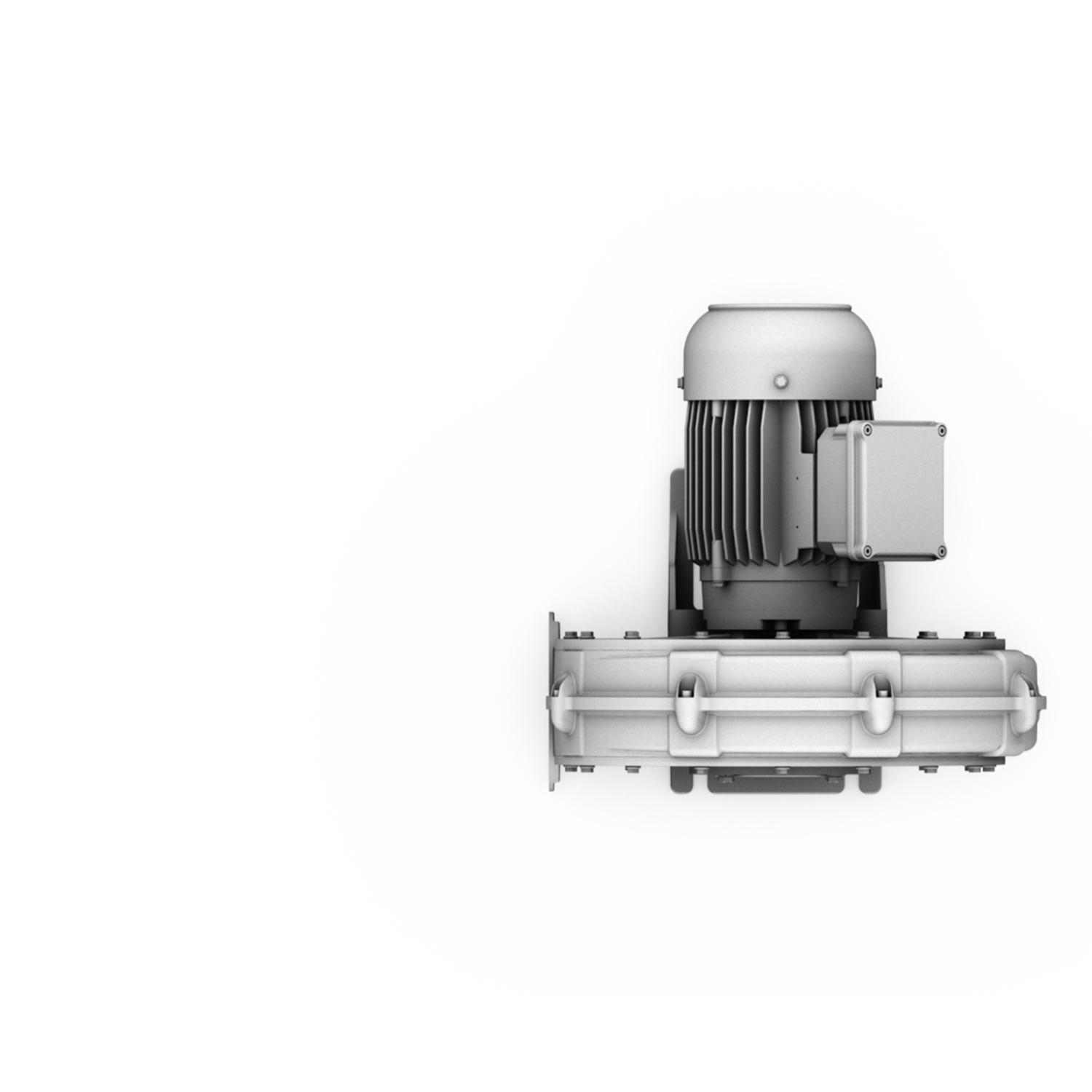

Radial High Pressure Blowers with frequency converter

HRD 2T FU/FUK

Up to 100 m³/min and 17,300 Pa. Wear-free, direct drive via offset (FU) or mounted (FUK) frequency converter. Higher rotation up to 105 Hz (approx. 6,200 rpm). Housing made of cast aluminium, impellers primarily bent backwards and made of aluminium, mostly corrosion-resistant.

Characteristic curves

Performance data



Efficiency class

Volume flow

Total pressure difference

Volume flow (negative pressure)

Total pressure difference (negative pressure)

Voltage

Frequency

Current consumption

Performance

Motor speed

Fan speed

Weight

Capacitor

Sound pressure level



-

m³/min

Pa

m³/min

Pa

V

Hz

A

kW

min-1

min-1

kg

µF/V

HRD 2T FU/FUK-95/1,50

7,7

8500





230/400

95

5,35/3,10

1,50

5520

5520

26





HRD 2T FU/FUK-95/2,20

13,5

8500





230/400

95

7,80/4,50

2,20

5520

5520

29





HRD 2T FU/FUK-95/3,00

27,0

8500





230/400

95

10,9/6,3

3,00

5600

5600

31





Characteristic curves

Performance data



Efficiency class

Volume flow

Total pressure difference

Volume flow (negative pressure)

Total pressure difference (negative pressure)

Voltage

Frequency

Current consumption

Performance

Motor speed

Fan speed

Weight

Capacitor

Sound pressure level



-

m³/min

Pa

m³/min

Pa

V

Hz

A

kW

min-1

min-1

kg

µF/V

HRD 2T FU/FUK-95/1,50

7,7

8500





400

95

3,1

1,50

5520

5520

30





HRD 2T FU/FUK-95/2,20

13,5

8500





400

95

4,5

2,20

5520

5520

33





HRD 2T FU/FUK-95/3,00

27,0

8500





400

95

6,3

3,00

5600

5600

41

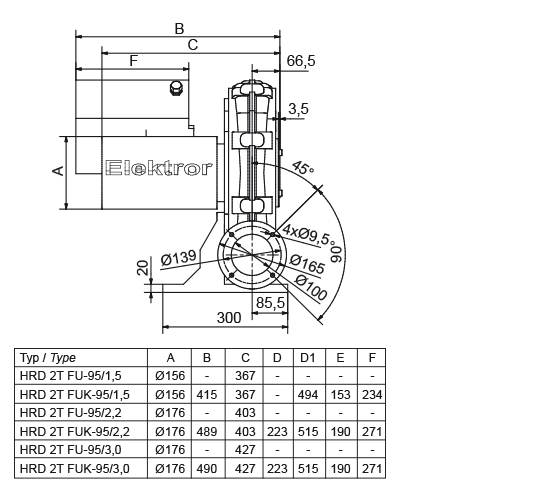

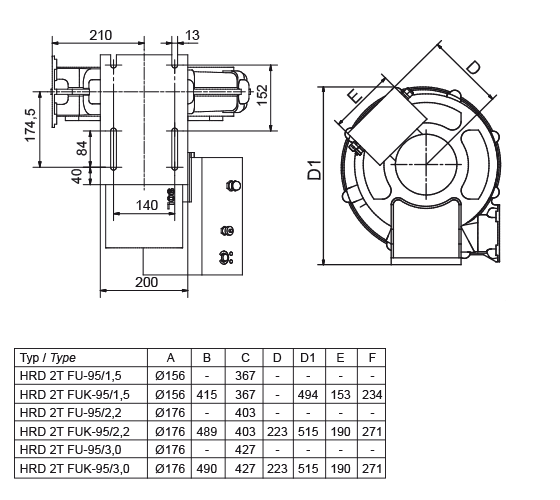

Technical drawings

Accessories
